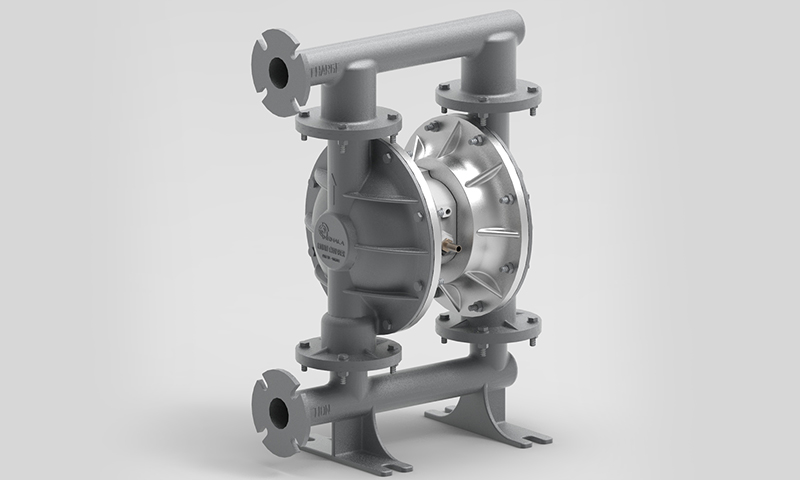

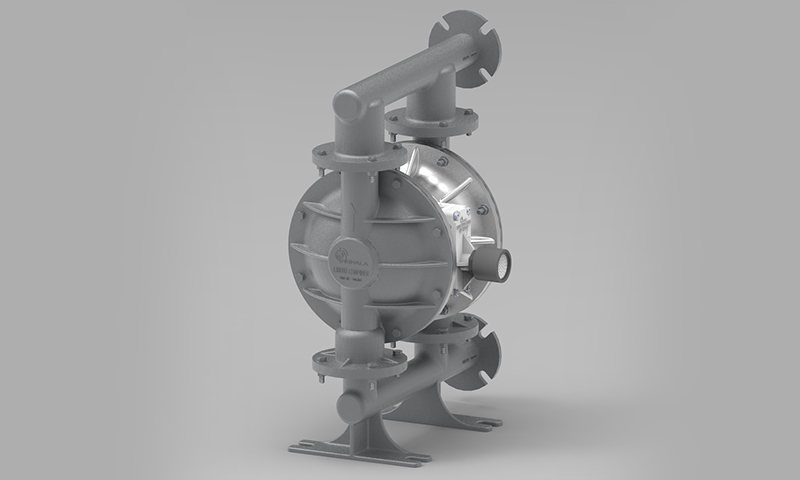

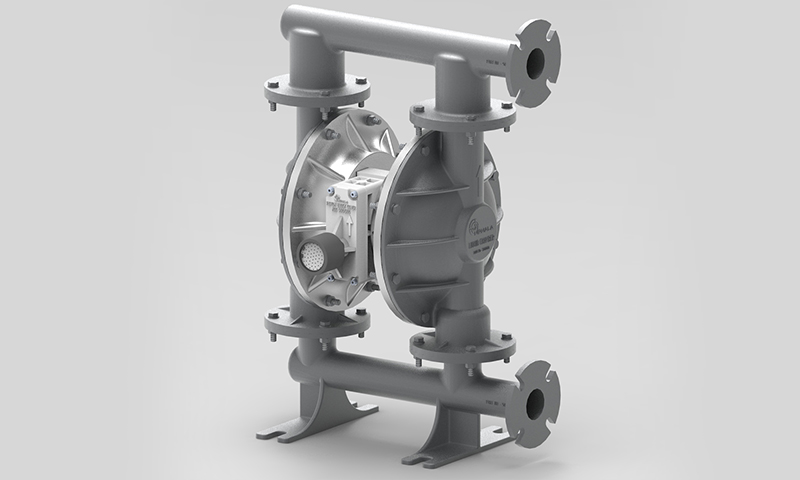

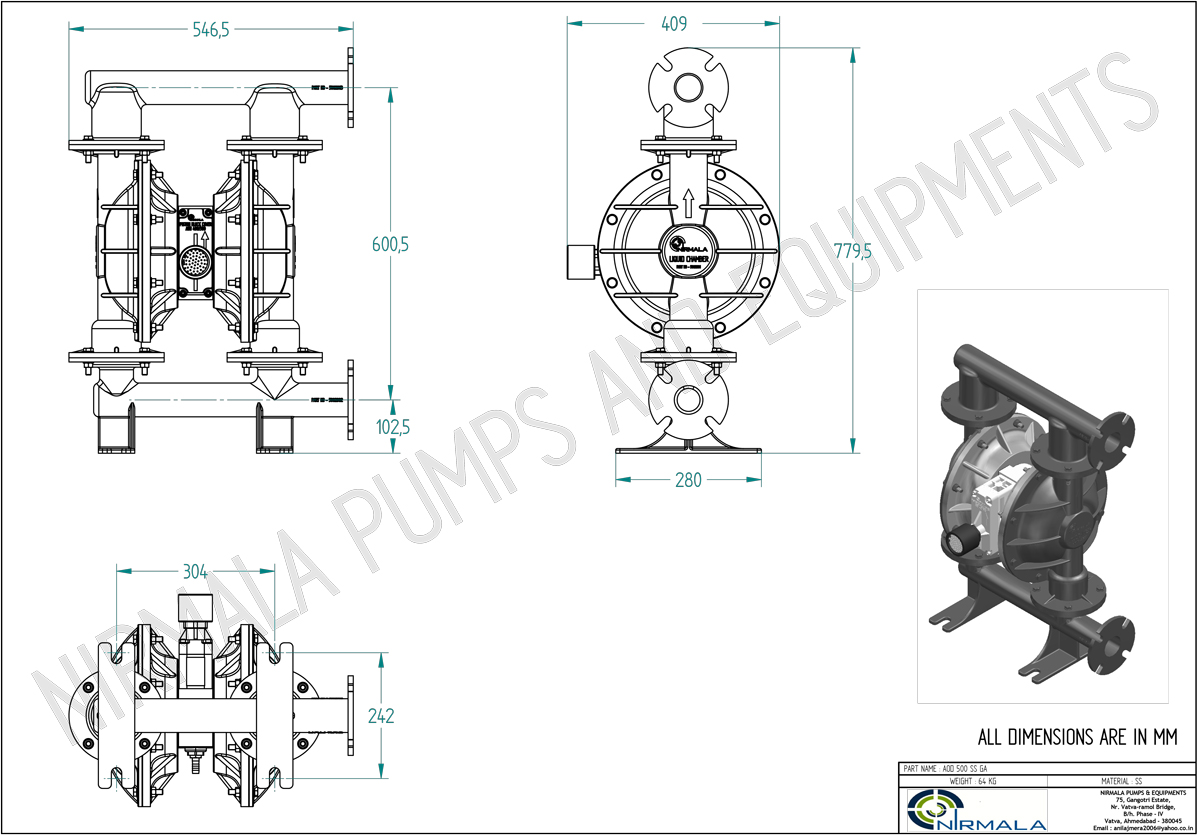

DATA SHEET FOR 500 SS AODD PUMP
| Pump Model | 500 SS AOD |
|---|---|
| QUANTITY | 1 |
| APPLICATIONS | Solvents , API Plants , Transfer Application |
| Max. Capacity | 550 LPM |
| Air Pressure | 8-8.6 bar |
| Liquid Inlet / Outlet | 2” |
| Make | “NIRMALA” Make |
| Air Inlet | ½” BSP |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 2” |
| Discharge Size | 2” |
| Connections | Flange End as per ASA-150 |
| Diaphragm | PTFE/ Sentoprene |
| NRV Ball | PTFE |
| Pump Model | 500 SS AOD |
|---|---|
| Wetted Parts | SS 316 |
| Outer Piston | SS 316 |
| Centre Piston(Holding Plate) | MS Powder Coated |
| Air Valve Assembly | PP |
| Diaphragm | PTFE/ Sentoprene |
| Valve Ball | PTFE |
| Valve Seat | SS 316 |
| O Ring | PTFE |
| Pump Model | 500 SS AOD |
|---|---|
| Suction Lift Dry | 3.05 m (10’) |
| Suction Lift Wet | 6.09 m (20’) |
| Maximum Flow Rate | 480 LPM |
| Maximum Size Solids | 6.35 mm (0.250”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | 12.70 mm (1/2”) |
| Inlet | 50.80 mm (2”) |
| Outlet | 50.80 mm (2”) |
| Air Pressure KG/CM2 | Head Meter | CFM | Capacity LT/MN | M3/HR |
|---|---|---|---|---|
| 1 | Open | 10.5 | 194 | 11.64 |
| 2 | OPEN | 13 | 264 | 15.84 |
| 10 | 12.5 | 160 | 9.6 | |
| 3 | OPEN | 16 | 314 | 18.84 |
| 10 | 15.5 | 200 | 12 | |
| 20 | 16 | 143 | 8.58 | |
| 4 | OPEN | 18.5 | 366 | 21.96 |
| 10 | 18 | 253 | 15.18 | |
| 20 | 17 | 173 | 10.38 | |
| 30 | 18 | 137 | 8.22 | |
| 5 | OPEN | 20 | 450 | 27 |
| 10 | 19.5 | 275 | 16.5 | |
| 20 | 20 | 194 | 11.64 | |
| 30 | 20 | 165 | 9.9 | |
| 40 | 20 | 126 | 7.56 | |
| 50 | 20 | 117 | 7.02 | |
| 6 | OPEN | 20 | 475 | 28.5 |
| 10 | 20 | 286 | 17.16 | |
| 20 | 20 | 206 | 12.36 | |
| 30 | 20 | 183 | 10.98 | |
| 40 | 20 | 143 | 8.58 |
| Pump Model | 500-SS-AODD |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
