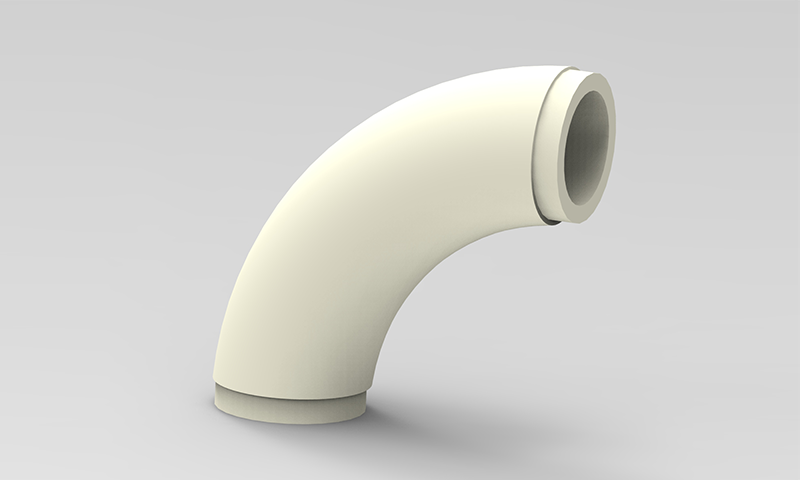

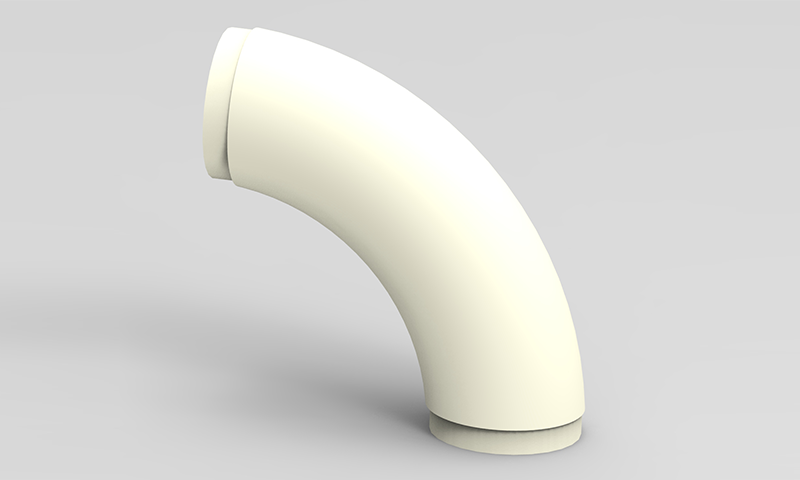

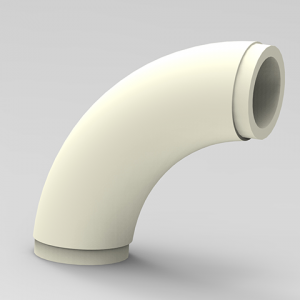

PVDF Elbow

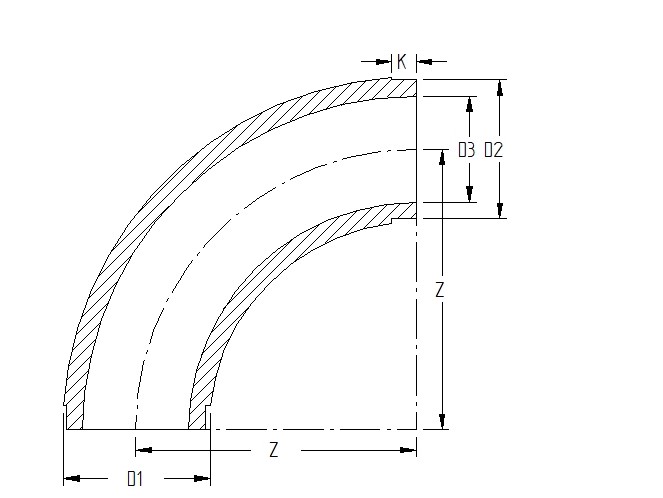

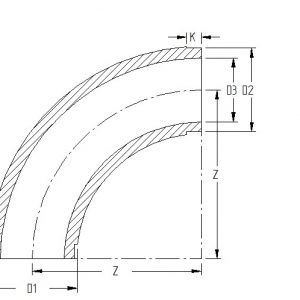

DATA SHEET FOR PVDF Elbow
| SIZE | D1
(mm) |
D2
(mm) |
D3
(mm) |
Z
(mm) |
K
(mm) |
|
| INCH | MM | |||||
| ½” | 20 | 24 | 20 | 15 | 35 | 4 |
| ¾” | 25 | 28 | 25 | 19 | 39 | 5 |
| 1” | 32 | 35 | 32 | 24 | 48 | 7 |
| 1 ¼” | 40 | 44 | 40 | 29 | 64 | 7 |
| 1 ½” | 50 | 53 | 50 | 37 | 69 | 9 |
| 2” | 63 | 66 | 63 | 48 | 70 | 11 |
| 2 ½” | 75 | 79 | 75 | 59 | 85 | 13 |
| 3” | 90 | 93 | 90 | 72 | 110 | 12 |
| 4” | 110 | 113 | 110 | 84 | 127 | 13 |
| 6” | 160 | 163 | 160 | 132 | 225 | 17 |
