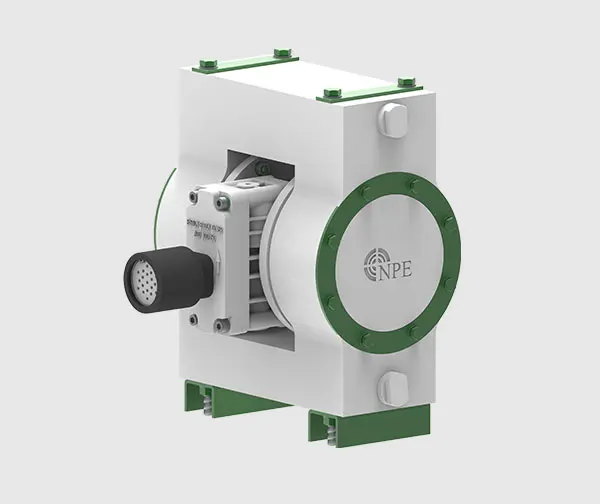

DATA SHEET FOR 150 PTFE AODD PUMP
| Pump Model 150 PTFE AODD | |
|---|---|
| QUANTITY | 1 |
| APPLICATIONS | Acids,Caustics, Solvents,Highly Abrasives Application |
| Max. Capacity | 35 LPM |
| Air Pressure | 8.6 bar |
| Liquid Inlet / Outlet | ½” (12.70 mm) |
| Air Inlet | ¼” (6.35mm) |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | ½” |
| Discharge Size | ½” |
| Connection | BSP Threaded/ Flange ASA-150 standard |
| Diaphragm | Teflon Diaphragm |
| NRV Ball | Teflon Bal |
| Pump Model 150 PTFE AODD | |
|---|---|
| Suction Lift Dry | 1.45 mtr. (4.75’) |
| Suction Lift Wet | 2.83 mtr. (9.28’) |
| Maximum Flow Rate | 30 Lpm |
| Maximum Size Solids | 2 mm (0.078”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | ¼” |
| Liquid Inlet | 12.70 mm (1/2” BSP) |
| Liquid Outlet | 12.70 mm (1/2” BSP) |
| Pump Model 150 PTFE AODD | |
|---|---|
| Wetted Parts | PTFE |
| Outer Piston | PVC |
| Centre Piston | MS Powder Coated |
| Air Valve | Polypropylene |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat | PVDF |
| O Ring | PTFE |
| Pump Model 150 PTFE AODD | |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
Get Reliable Chemical Handling with Our ½” PTFE AODD Pump
Handling hazardous chemicals or liquids is never easy, but our 150 PTFE AODD makes the job a lot safer. At Nirmala Pumps, we design and build durable and leak-proof pumps. Our 1/2-inch PTFE AODD pump is light, easy to move, and handles dangerous fluids effortlessly. Today, we are proud to be among the most trusted ½” PTFE AODD pump manufacturers in India, giving you world-class features like simple operation, explosion-proof design, self-priming capability, and dry-run safety at a much better value. We don’t just sell machines; as dedicated ½” PTFE AODD pump suppliers in India, we focus on product quality and customer service. Our pumps are designed so that even a basic technician can handle the maintenance. If you want a 0.5″ PTFE AODD pump that just works without constant headaches, contact us today.
