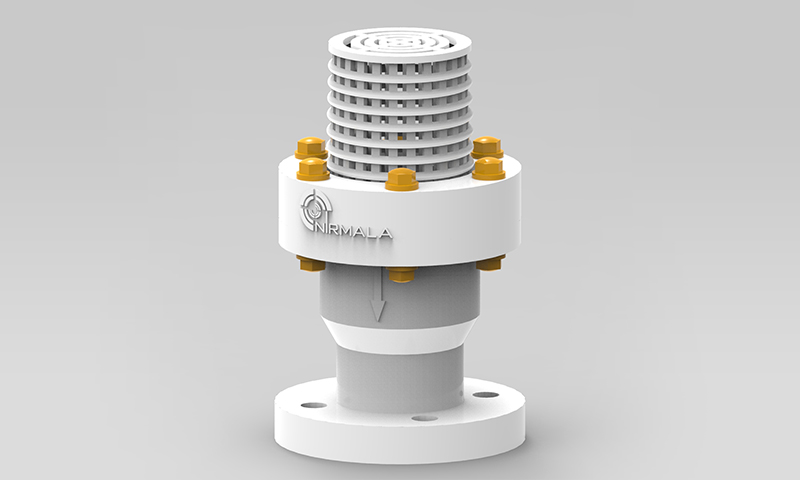

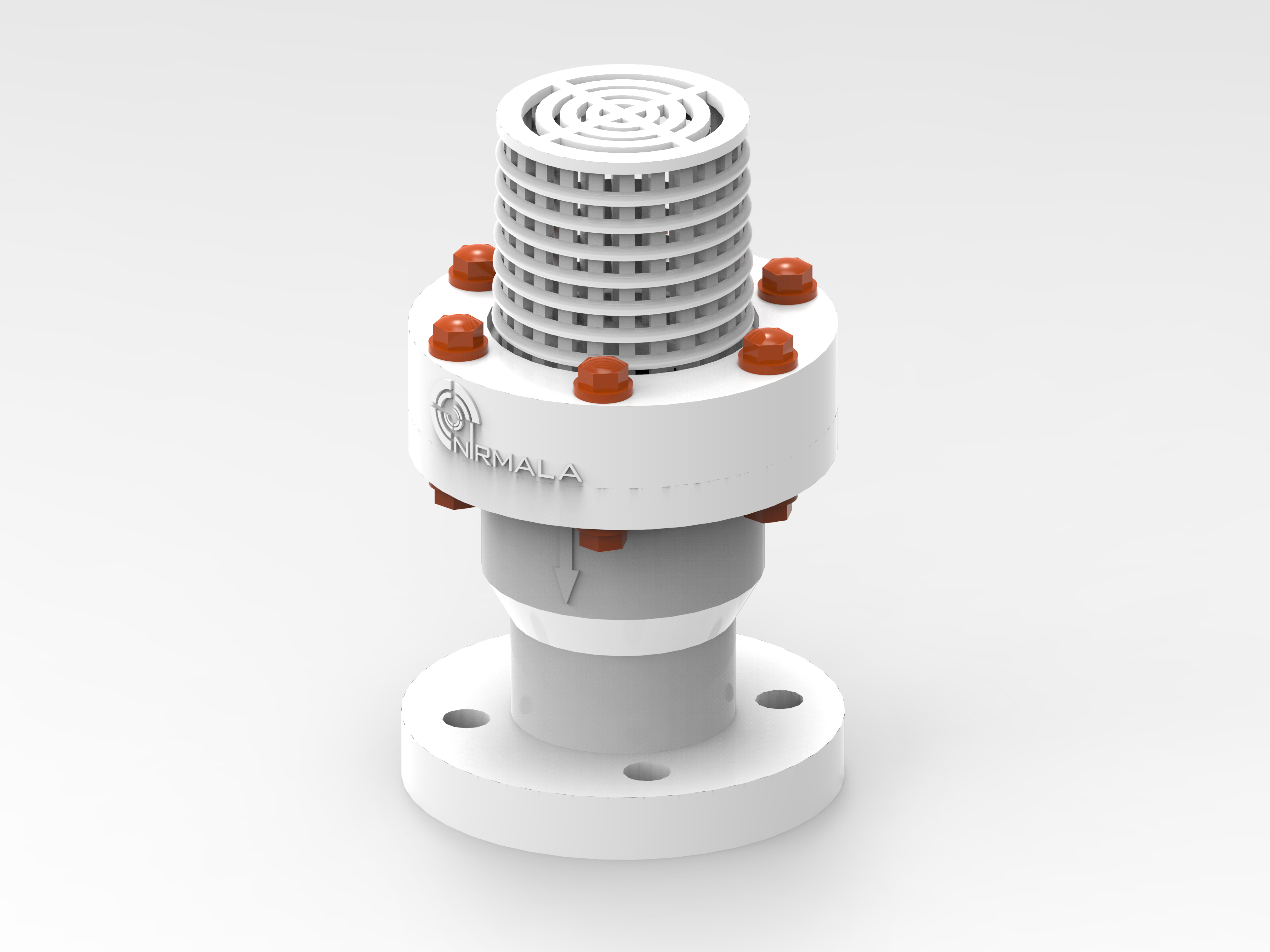

DATA SHEET FOR PP FOOT VALVE (Ball TYPE)

PARTMATERIALQUANTITY
BodyPP1
BallPP1
Side piece / connectorPP1
Seat ring Neoprene1
Ball ring Neoprene 1
Stud, Nut and WasherMS Galvanized / SS-304Req.

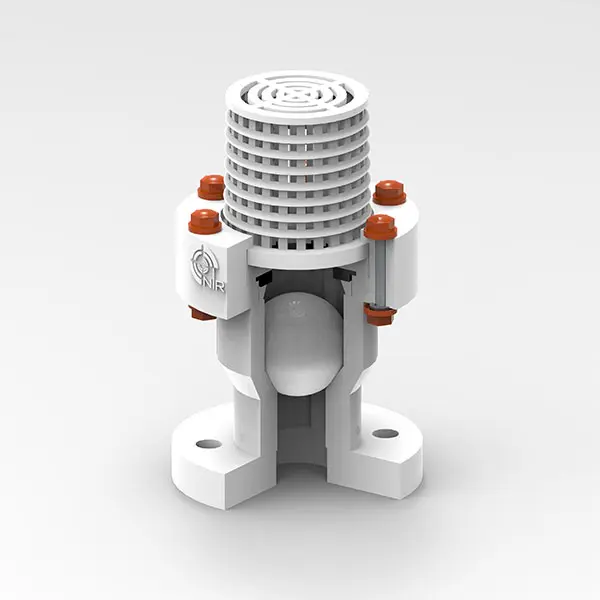

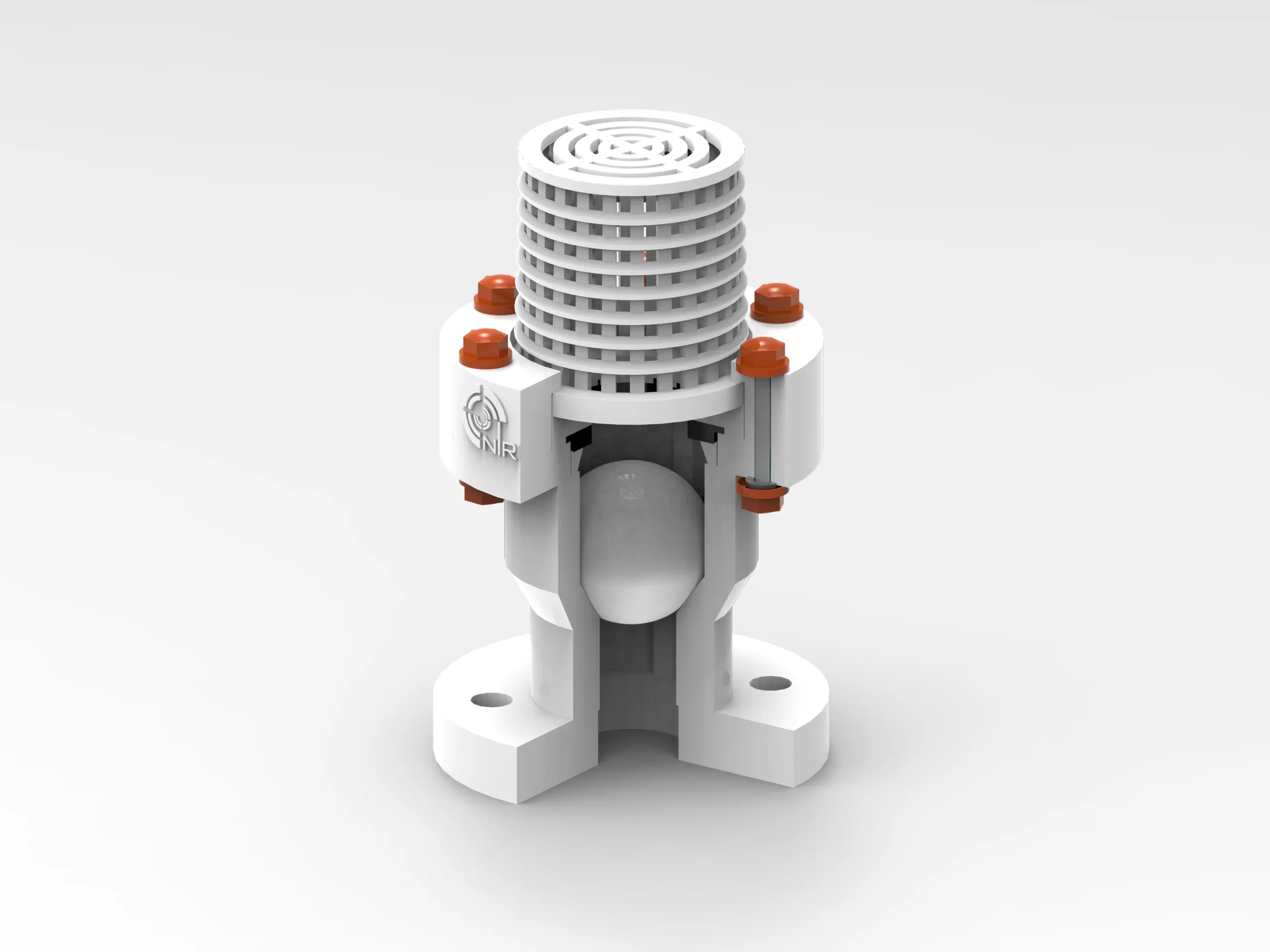

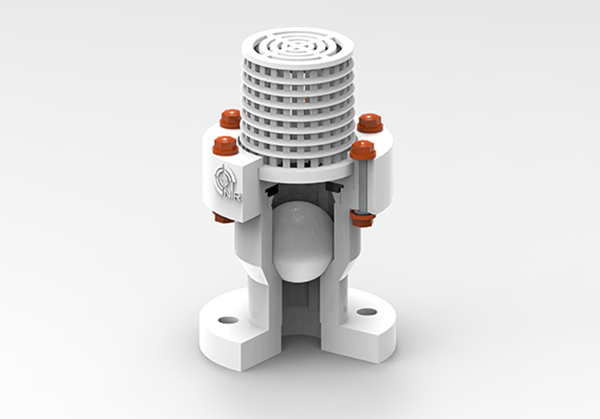

  • Free Floating Type Ball.
  • Prevaricate the reverse flow of materials
  • Best Suitable for Slurry Liquid
  • Maintain the hydraulic pressure ensuring excellent uni-directional flow of materials
BODY25NB TO 100NB10 KG/CM2 (140 PSI)
SEAT25NB TO 100NB10 KG/CM2 (140 PSI)
  • PPCP-Polypropylene Co-Polymer-800 C
  • ASA #150
  • F- Table
  • Capsule Shape (Universal Drill)

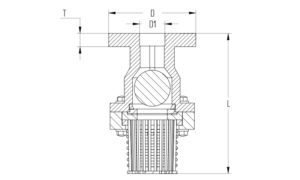

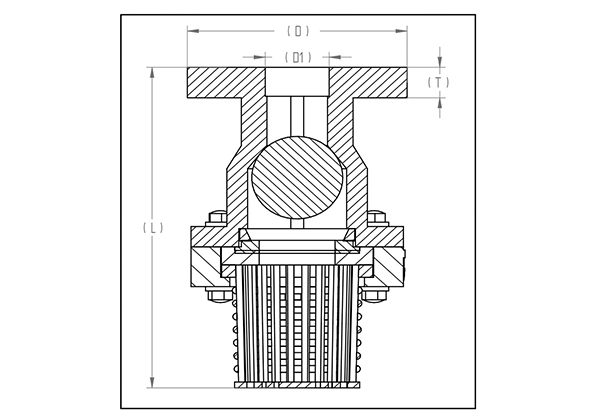

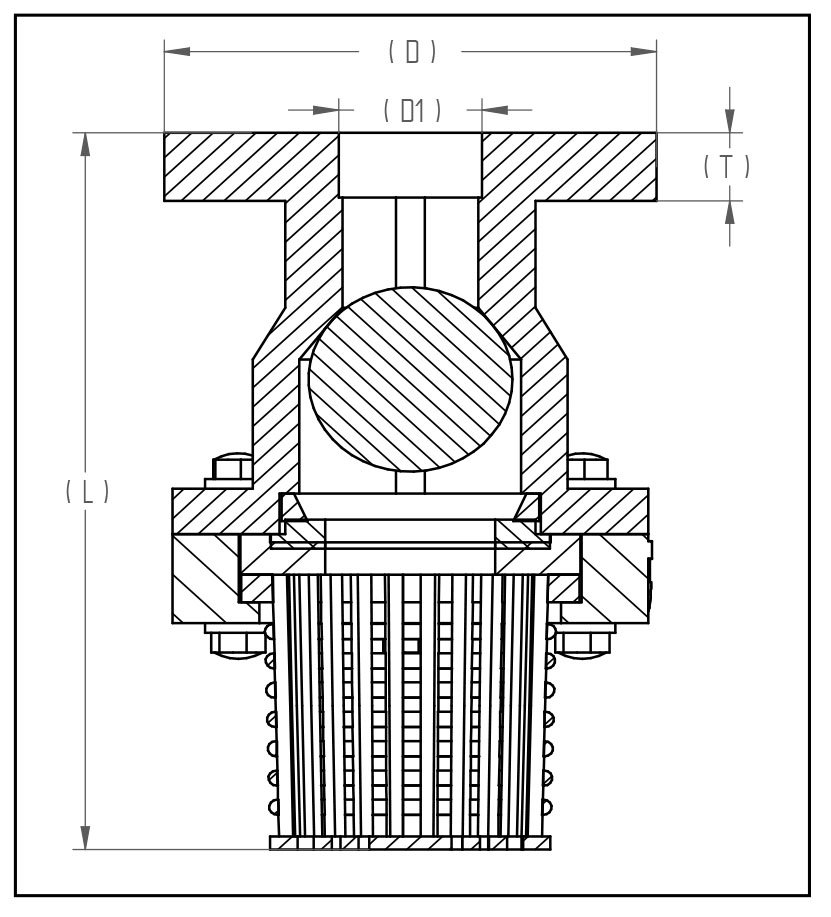

Size D D1 L T PCD
BS 10 table ‘f’ Asa # 150
PCD Dia of Hole No. of Hole PCD Dia of Hole No. of Hole
25NB 1” 121 25 196 21 87 14 4 79 14 4
40NB 1 ½” 140 40 218 22 105 15 4 98 15 4
50NB 2” 166 50 218 24 127 17 4 120 17 4
65NB 2 ½” 183 65 311 28 145 17 4 140 17 4
80NB 3” 200 80 311 31 165 17 8 152 17 4
100NB 4” 228 100 311 29 191 17 8 191 17 8
