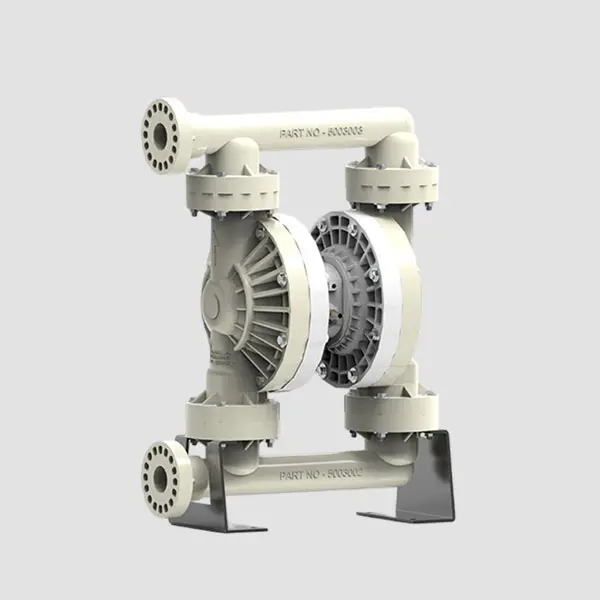

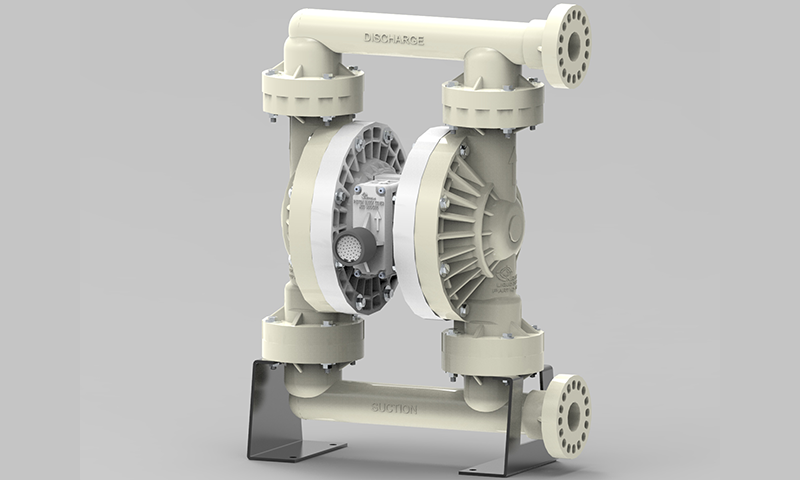

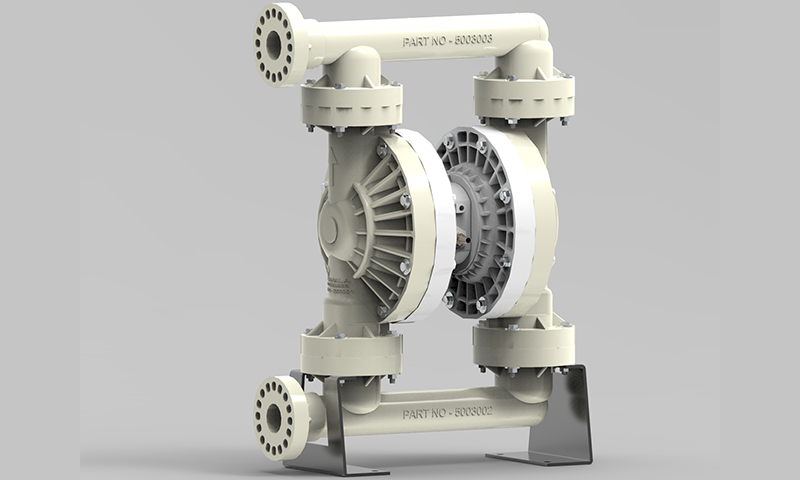

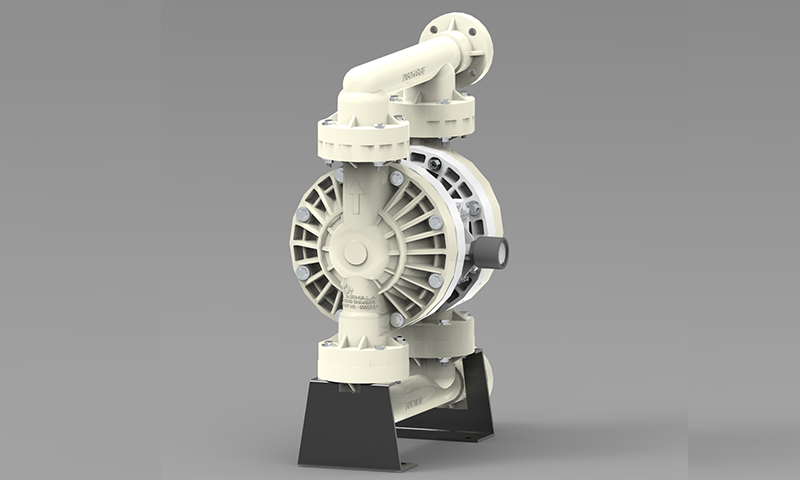

DATA SHEET FOR 500 PVDF AODD Pump
Nirmala Pumps & Equipments established in 1989, Since that time our main focus is to provide quality process pumps. By providing unique solutions to critical pumping applications with the most cost-effective, reliable and energy-efficient pumps.
| Pump Model 500 PVDF AOD | |
|---|---|
| Quantity | 1 |
| Applications | Bromine, Highly Abrasive, High Temp., Filter Press Application |
| Capacity | 550 LPM |
| Air Pressure | 8 – 8.6 bar |
| Air Inlet | ½” BSP |
| Liquid Inlet / Outlet | 2” |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 2” |
| Discharge Size | 2” |
| Connection | Flange End as per ASA-150 |
| Diaphragm | PTFE Diaphragm with Santoprene Backup |
| NRV Ball | PTFE |
| Pump Model 500 PVDF AODD | |
|---|---|
| Wetted Parts | PVDF |
| Outer Piston (Lock Nut) | PVDF |
| Centre Piston (Holding Plate) | MS Powder Coated |
| Air Valve | Polypropylene |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat | PVDF |
| O Ring | PTFE |
| Pump Model 500 PVDF AOD | |
|---|---|
| Suction Lift (Dry) | 3.05 m (10’) |
| Suction Lift (Wet) | 6.09 m (20’) |
| Maximum Flow Rate | 480 LPM |
| Maximum Size Solids | 6.35 mm (0.250”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | 12.70 mm (1/2”) |
| Liquid Inlet | 50.80 mm (2”) |
| Liquid Outlet | 50.80 mm (2”) |
| Air Pressure (KG/CM²) | Head (Meter) | CFM | Capacity (LT/MN) | M³/HR | ||||||||||||
| 1 | Open | 10.5 | 194 | 11.64 | ||||||||||||
| 2 | Open | 13 | 264 | 15.84 | ||||||||||||
| 10 | 12.5 | 160 | 9.60 | |||||||||||||
| 3 | Open | 16 | 314 | 18.84 | ||||||||||||
| 10 | 15.5 | 200 | 12.00 | |||||||||||||
| 20 | 16 | 143 | 8.58 | |||||||||||||
| 4 | Open | 18.5 | 366 | 21.96 | ||||||||||||
| 10 | 18 | 253 | 15.18 | |||||||||||||
| 20 | 17 | 173 | 10.38 | |||||||||||||
| 30 | 18 | 137 | 8.22 | |||||||||||||
| 5 | Open | 450 | 27 | 27.00 | ||||||||||||
| 10 | 19.5 | 275 | 16.50 | |||||||||||||
| 20 | 20 | 194 | 11.64 | |||||||||||||
| 30 | 20 | 165 | 9.90 | |||||||||||||
| 40 | 20 | 126 | 7.56 | |||||||||||||
| 6 | Open | 20 | 475 | 28.50 | ||||||||||||
| 50 | 20 | 117 | 7.02 | |||||||||||||
| 10 | 20 | 286 | 17.16 | |||||||||||||
| 20 | 20 | 206 | 12.3
Temperature Limits

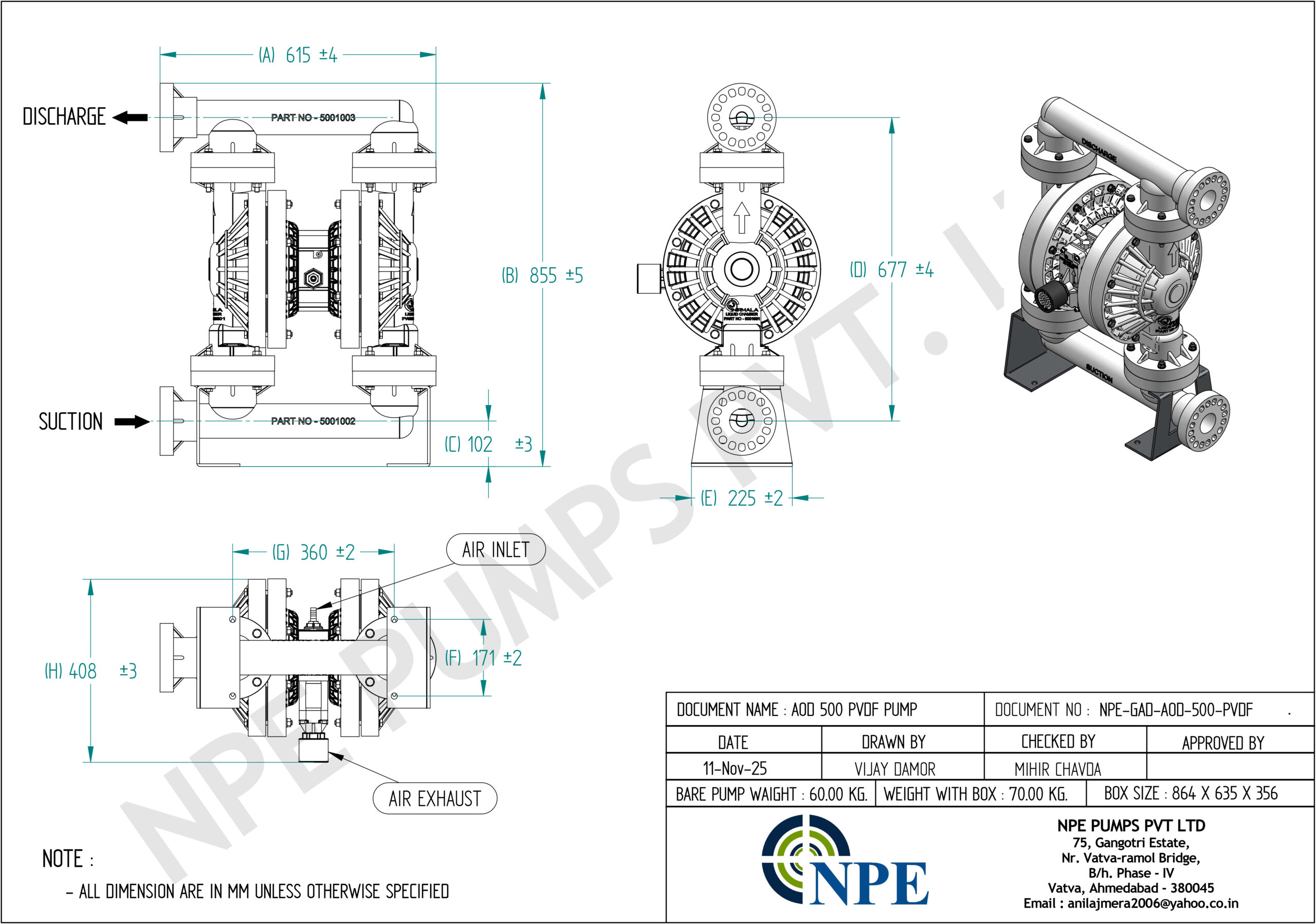

500 PVDF AODD Pump GAD
Get Reliable Flow With Our
| |||||||||||||
