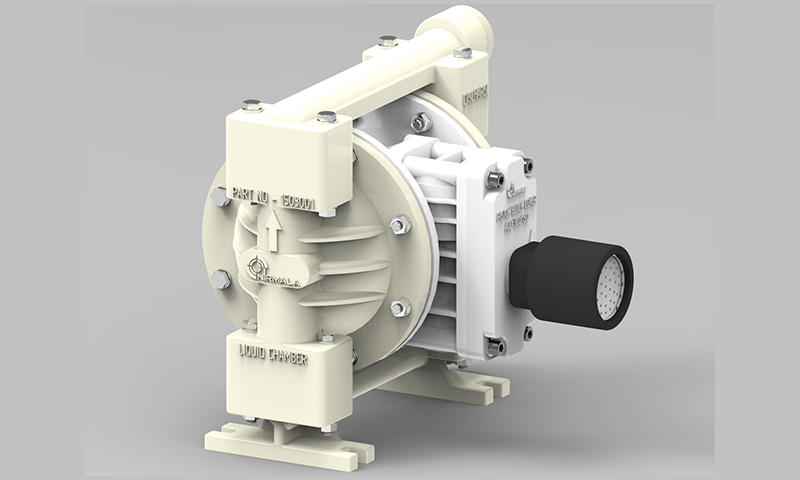

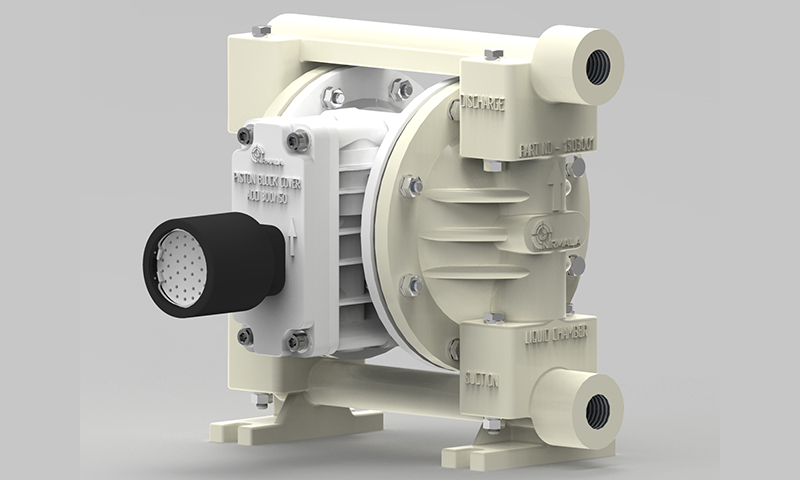

150 PVDF AODD Pump
| Pump Model 150 PVDF AODD | |
|---|---|
| Quantity | 1 |
| Applications | Bromine, Highly Abrasives Application |
| Max. Capacity | 35 LPM |
| Air Pressure | 8.6 bar |
| Liquid Inlet / Outlet | ½” (12.70 mm) |
| Air Inlet | ¼” (6.35 mm) |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | ½” |
| Discharge Size | ½” |
| Connection | BSP Threaded / Flange ASA-150 Standard |
| Diaphragm | Teflon Diaphragm |
| NRV Ball | Teflon Ball |
| Pump Model 150 PVDF AOD | |
|---|---|
| Wetted Parts | PVDF |
| Outer Piston | PVDF |
| Centre Piston | MS Powder Coated |
| Air Valve | Polypropylene |
| Diaphragm | PTFE Diaphragm with Santoprene Backup |
| Valve Ball | Teflon |
| Valve Seat | PVDF |
| O Ring | PTFE |
| Pump Model 150 PVDF AOD | |
|---|---|
| Suction Lift (Dry) | 1.45 mtr. (4.75’) |
| Suction Lift (Wet) | 2.83 mtr. (9.28’) |
| Maximum Flow Rate | 30 LPM |
| Maximum Size Solids | 2 mm (0.078”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | ¼” |
| Liquid Inlet | 12.70 mm (½” BSP) |
| Liquid Outlet | 12.70 mm (½” BSP) |
| Air Pressure Performance | ||||
|---|---|---|---|---|
| Air Pressure (kg/cm²) | Head (m) | CFM | Capacity (L/min) | Capacity (m³/hr) |
| 2 | Open | 8 | 30 | 1.80 |
| 10 | 8.5 | 29 | 1.75 | |
| 3 | Open | 15 | 33 | 1.98 |
| 10 | 14 | 30 | 1.80 | |
| 20 | 18 | 24 | 1.44 | |
| 4 | Open | 14 | 34 | 2.00 |
| 10 | 17 | 25 | 1.50 | |
| 20 | 25 | 22 | 1.32 | |
| 30 | 23 | 19 | 1.14 | |
| 6 | Open | 17 | 35 | 2.10 |
| 10 | 15 | 33 | 1.98 | |
| 20 | 19 | 30 | 1.80 | |
| 30 | 20 | 23 | 1.40 | |
| 40 | 23 | 20 | 1.25 | |
| Pump Model: 150-PVDF-AODD | |
|---|---|
| Material | Temperature Range |
| P.P | 0˚C – 80˚C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
Get Reliable Flow With Our

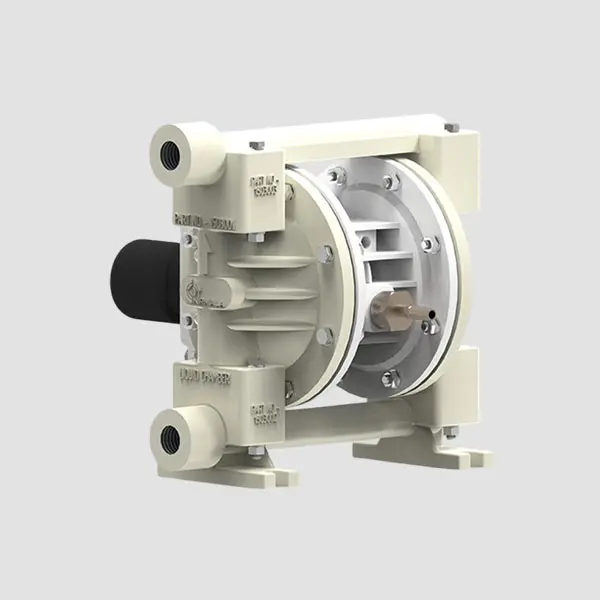

150 PVDF AODD Pump
Dealing with harsh chemicals or abrasive liquids is never easy, but the 150 PVDF AODD Pump from Nirmala Pumps makes the job much smoother. This pump is a standout in our PVDF AODD Pumps lineup, specifically built for those who can’t afford downtime caused by corrosion or leaks. The pump is built for industries that deal with harsh and corrosive chemicals. This 1/2-inch PVDF AODD pump is widely used in chemical plants, pharmaceuticals, water treatment, and processing units.
Our 1/2″ PVDF AODD pump is valued for its strong build, smooth operation, and reliable performance in demanding conditions. We are counted among reliable 1/2-inch PVDF AODD Pump manufacturers in India, offering cost-effective pumping solutions with consistent support.
As top 1/2-inch PVDF AODD Pump suppliers in India, we have built our reputation on quality that lasts. If you’re struggling with pumps that leak or corrode when handling harsh acids, our 150 PVDF AODD Pump is going to be a game-changer for you.
