DATA SHEET FOR 400 Aluminum AODD Pump
| Pump Model 400 AL AODD | |
|---|---|
| Applications | Handling paints, resins, adhesives, and inks |
| Make | “NIRMALA” Make |
| Quantity | 1 |
| Air Pressure | 8.6 bar |
| Max. Capacity | 250 LPM |
| Air Inlet | 10 mm |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 1 ½” |
| Discharge Size | 1 ½” |
| Connections | Flange ASA-150 standard |
| Pump Model 400 AODD | |
|---|---|
| Wetted Parts | Aluminium |
| Outer Piston | MS Powder Coated |
| Centre Piston | Aluminium |
| Air Valve | PP |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| NRV | PTFE BALL |
| Ball Seat | Polypropylene |
| Ball Seat O-Ring | PTFE |
| Pump Model 400 AL AODD | |
|---|---|
| Suction Lift Dry | 4.57 m (15’) |
| Suction Lift Wet | 7.62 m (32’) |
| Maximum Flow Rate | 250 LPM |
| Maximum Size Solids | 4.76 mm (0.188”) |
Get Our Premium

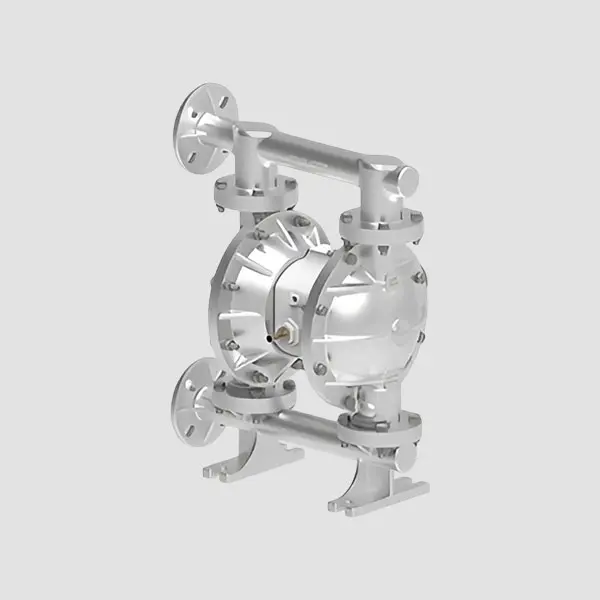

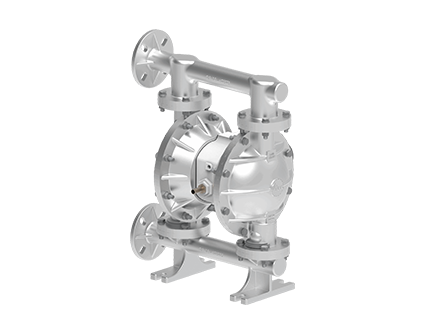

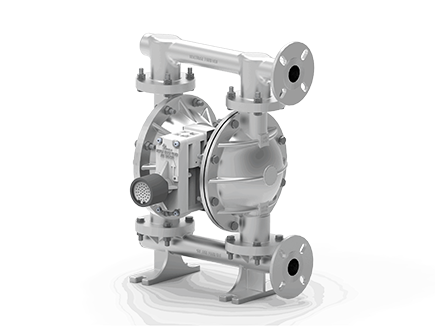

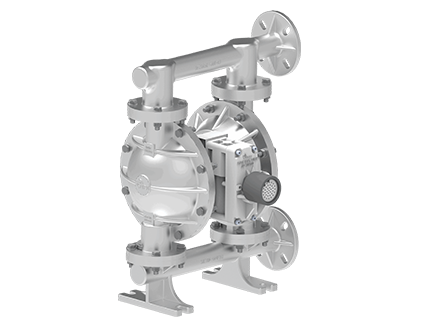

400 Aluminum AODD Pump
Finding a balance between a lightweight design and heavy-duty power is tough, but our 400 Aluminum AODD Pump makes it look easy. This 1 ½-inch aluminum AODD pump is the go-to choice for professionals who need to transfer oils, solvents, or water-based fluids quickly and safely.
At Nirmala Pumps, we’ve looked at what the biggest names in the industry offer and made sure our pumps hit those same high standards. As leading 1 ½-inch Aluminum AODD Pump manufacturers in India, we focus on getting you the right equipment at a fair price.
You get a pump that is easy to maintain, features a simple stall-free air system, and offers excellent suction lift. Because it’s made from high-grade aluminum, it’s easy to move around your site while still being tough enough to handle daily wear and tear. If you are searching for reputable 1 ½-inch aluminum AODD pump suppliers in India, end your search here. Contact us today to discuss your requirements for 1 ½” aluminum AODD pumps with us.
