DATA SHEET FOR 400 SS AODD PUMP
PUMP DESCRIPTION
MATERIALS
PERFORMANCE
Test Report
Temperature Limits
400 SS AODD GAD
PUMP DESCRIPTION
| Pump Model 400 SS AOD | |
|---|---|
| Quantity | 1 |
| Applications | Solvents, API, Chemical Plant Transfer and Filter Press Application |
| Max. Capacity | 230 LPM |
| Air Pressure | 8.0 Bar |
| Air Inlet | ½” BSP |
| Liquid Inlet / Outlet | 1.5” |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 1.5” |
| Discharge Size | 1.5” |
| Connection | Flange End as per ASA-150 |
| Diaphragm | PTFE / Sentoprene |
| NRV Ball | PTFE |
MATERIALS
| Pump Model 400 SS AODD | |
|---|---|
| Wetted Parts | SS 316 |
| Outer Piston (Lock Nut) | SS 316 |
| Centre Piston (Holding Plate) | MS Powder Coated |
| Air Valve Assembly | PP |
| Diaphragm | PTFE / Sentoprene |
| Valve Ball | PTFE |
| Valve Seat | SS 316 |
| O Ring | PTFE |
PERFORMANCE
| Pump Model 400 SS AODD | |
|---|---|
| Suction Lift Dry | 3.05 Mtr (10’) |
| Suction Lift Wet | 6.09 Mtr (20’) |
| Maximum Flow Rate | 210 LPM |
| Maximum Size Solids | 4.76 mm (1.188”) |
| Maximum Air Pressure | 8 bar |
| Air Inlet | ½” BSP |
| Liquid Inlet | 38.10 mm (1.5”) |
| Liquid Outlet | 38.10 mm (1.5”) |
Test Report
| Air Pressure (KG/CM²) | Head (Meter) | CFM | Capacity (Ltr/Min) | Capacity (M³/Hr) |
| 1 | Open | 12 | 101.53 | 6.09 |
| 2 | Open | 15 | 157.14 | 9.43 |
| 10 | 14 | 117.85 | 7.07 | |
| 3 | Open | 18 | 189.00 | 11.31 |
| 10 | 18 | 155.00 | 9.21 | |
| 20 | 18 | 110.00 | 6.60 | |
| 4 | Open | 22 | 200.00 | 12.00 |
| 10 | 21 | 183.50 | 11.00 | |
| 20 | 23 | 137.50 | 8.25 | |
| 30 | 22 | 107.00 | 6.39 | |
| 5 | Open | 25 | 228.00 | 13.65 |
| 10 | 24 | 206.25 | 12.38 | |
| 20 | 23 | 165.00 | 9.90 | |
| 30 | 23 | 136.00 | 8.08 | |
| 40 | 23 | 92.00 | 5.50 |
Temperature Limits
| Pump Model 400-SS-AODD | |
|---|---|
| P.P | 0˚C – 80˚C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |

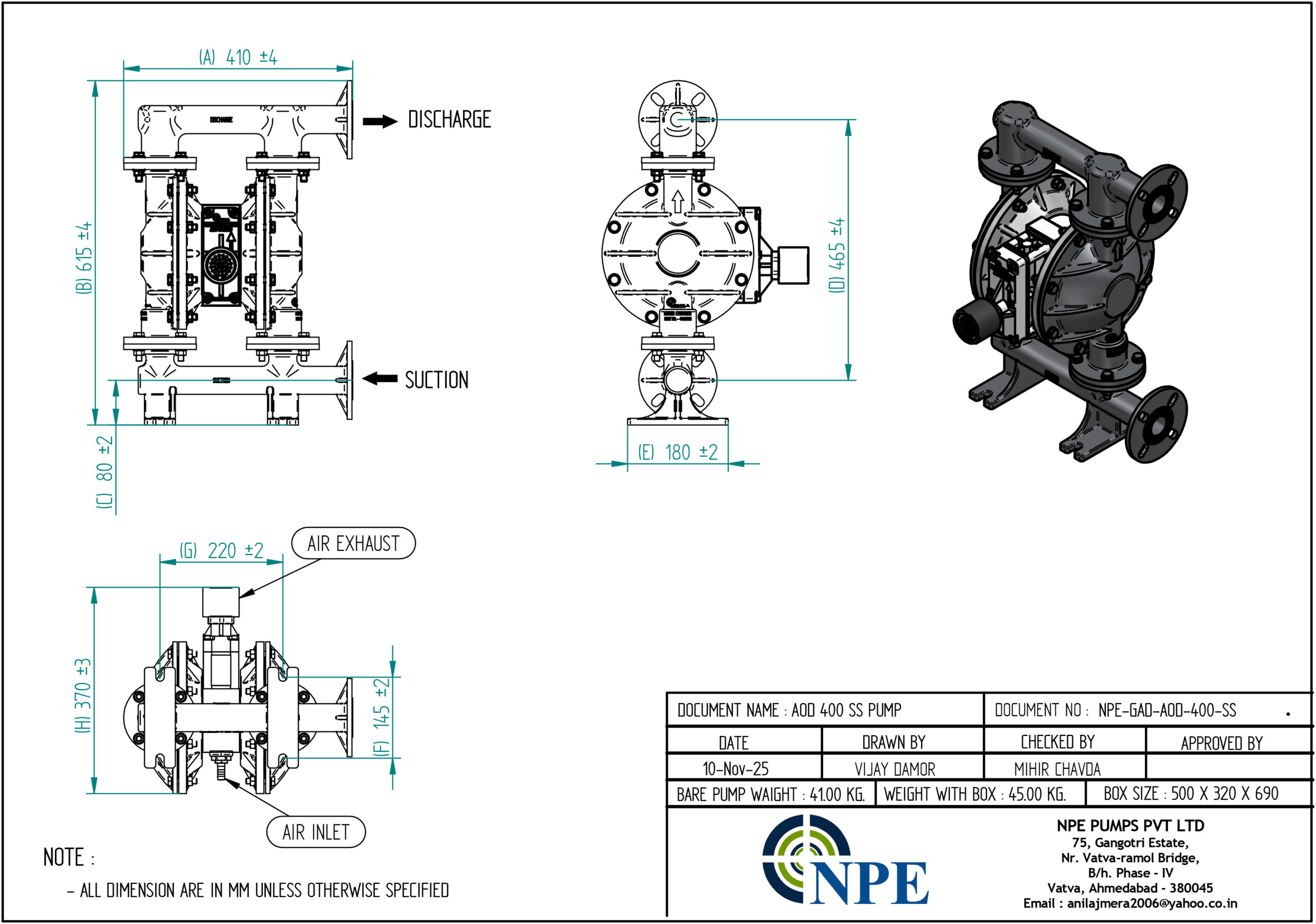

400 SS AODD GAD

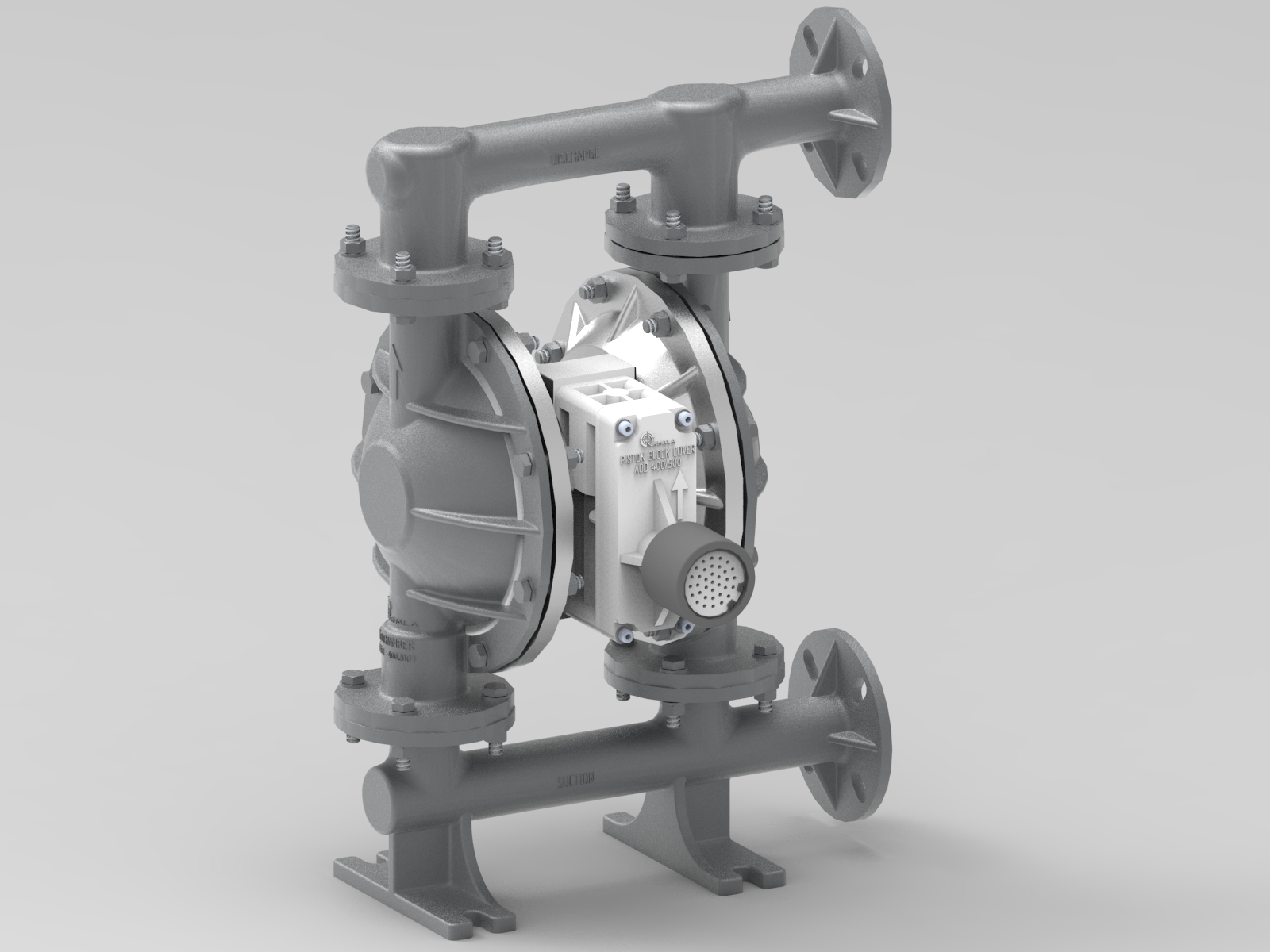

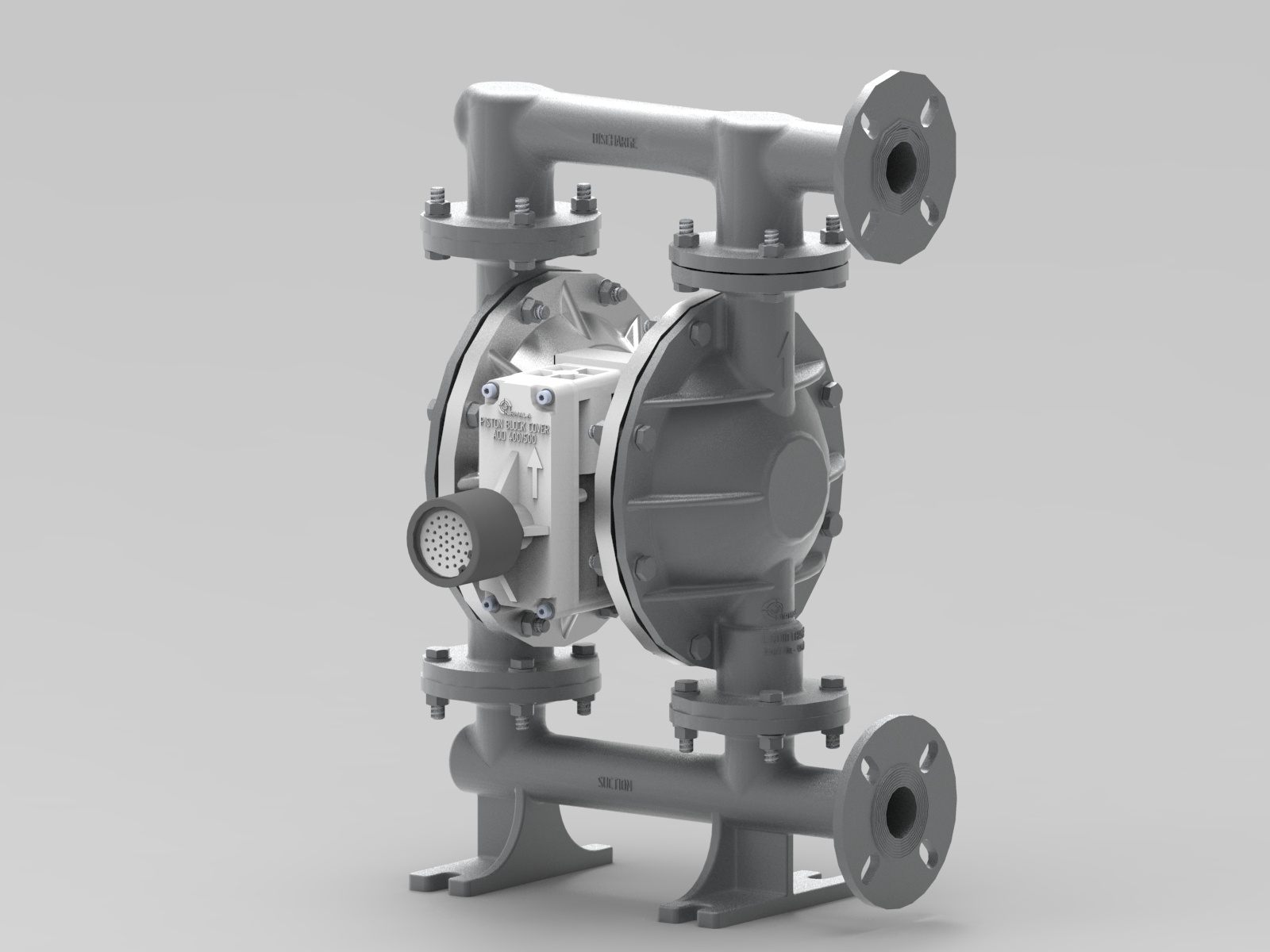

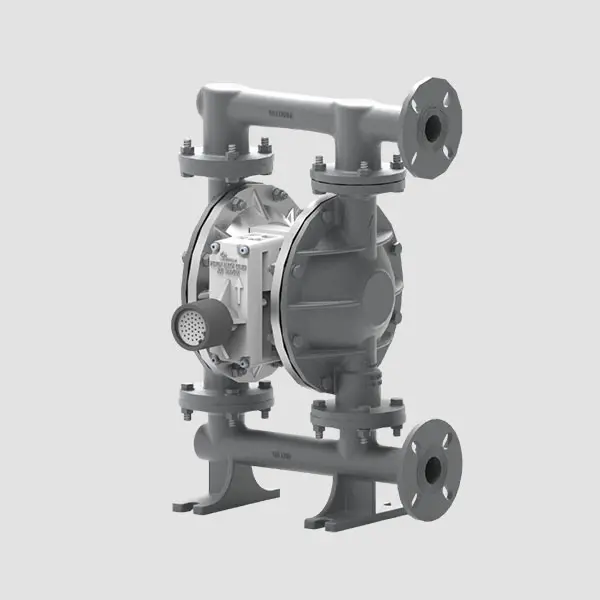

Robustly Constructed 1 ½-inch SS AODD Pump
At Nirmala Pumps, we design and build high-quality 400 SS AODD pumps using durable raw materials and latest technology. Our high-grade 1 ½-inch SS AODD pump is built to take on the tough jobs—whether you’re moving thick chemicals or sensitive fluids that need gentle handling. As prominent 1 ½-inch SS AODD Pump suppliers in India, we don’t just sell you a machine; we provide a pumping solution that keeps your production line moving without a hitch.
You get standard, reliable features in our SS pumps like self-priming tech and a portable design. We focus on making sure our stainless steel bodies are rugged enough to last years, even in harsh environments. Our 1 ½” SS AODD pump is suitable for chemicals, oils, slurry, and other industrial liquids where steady performance is required. We are among trusted 1 ½-inch SS AODD Pump manufacturers in India, that follow industry-accepted designs and quality standards.
