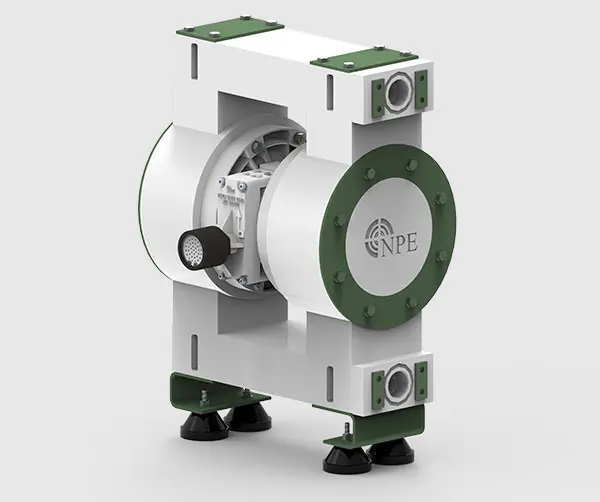

DATA SHEET FOR 400 PTFE AODD PUMP
| Pump Model 400 PTFE AODD | |
|---|---|
| QUANTITY | 1 |
| Capacity | 230 LPM |
| APPLICATIONS | Acids,Caustics, Solvents,Highly Abrasives Application |
| Air Pressure | 8.0 Bar |
| Liquid Inlet / Outlet | 1.5” |
| Air Inlet | ½”BSP (12mm) |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 1.5” |
| Discharge Size | 1.5” |
| Connection | Flange End as per ASA-150 |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| NRV Ball | PTFE |
| Pump Model 400 PTFE AODD | |
|---|---|
| Suction Lift Dry | 3.05 Mtr (10’) |
| Suction Lift Wet | 6.09 mtr ( 20’) |
| Maximum Flow Rate | 210 LPM |
| Maximum Size Solids | 4.76 mm (1.188”) |
| Maximum Air Pressure | 8 bar |
| Air Inlet | ½” BSP |
| Liquid Inlet | 38.10 mm (1.5”) |
| Liquid Outlet | 38.10 mm (1.5”) |
| Pump Model 400 PVDF AOD | |
|---|---|
| Wetted Parts | PTFE |
| Outer Piston | PVDF |
| Centre Piston (Holding Plate) | MS Powder Coated |
| Air Valve Assembly | Polypropylene |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat | PVDF |
| O Ring | PTFE |
| Pump Model 400 PTFE AODD | |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |

Get Reliable Chemical Handling with Our 1 ½” PTFE AODD Pump
Handling hazardous chemicals or liquids is never easy, but our 400 PTFE AODD makes the job a lot safer. At Nirmala Pumps, we design and build durable and leak-proof pumps. Our 1 ½-inch PTFE AODD pump is light, easy to move, and handles dangerous fluids effortlessly. Today, we are proud to be among the most trusted 1 ½” PTFE AODD pump manufacturers in India, giving you world-class features like simple operation, explosion-proof design, self-priming capability, and dry-run safety at a much better value. We don’t just sell machines; as dedicated 1 ½” PTFE AODD pump suppliers in India, we focus on product quality and customer service. Our pumps are designed so that even a basic technician can handle the maintenance. If you want a 1.5″ PTFE AODD pump that just works without constant headaches, contact us today.
