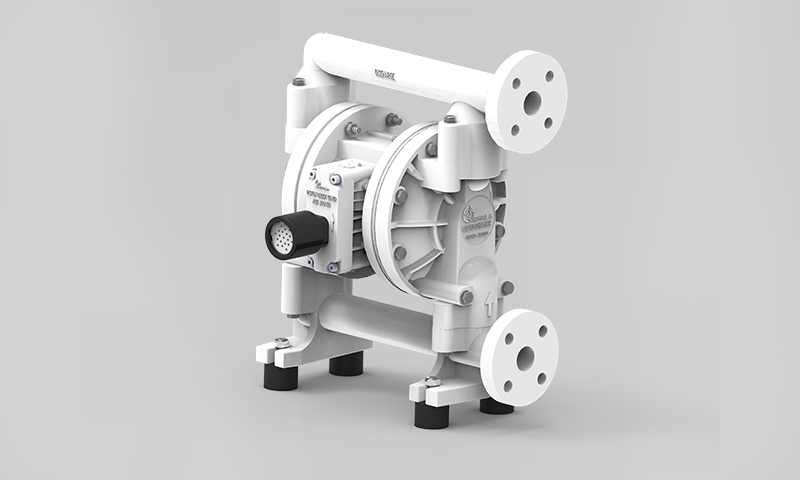

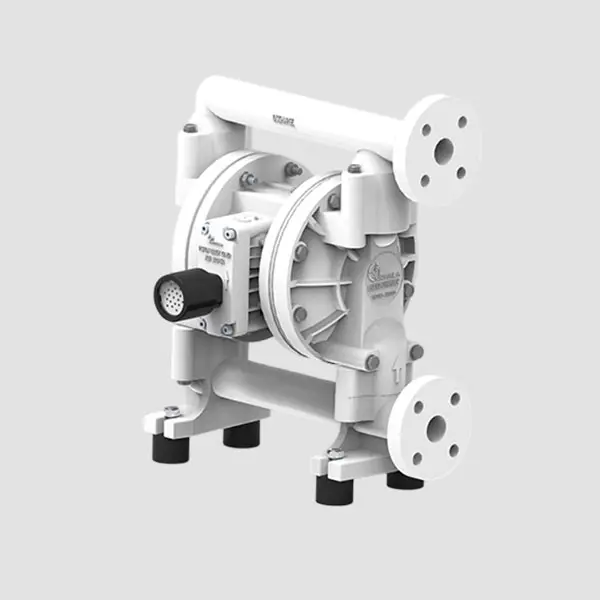

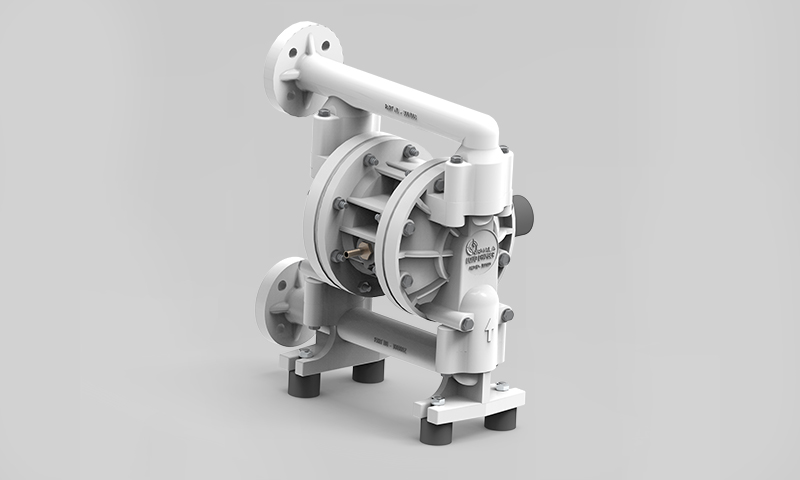

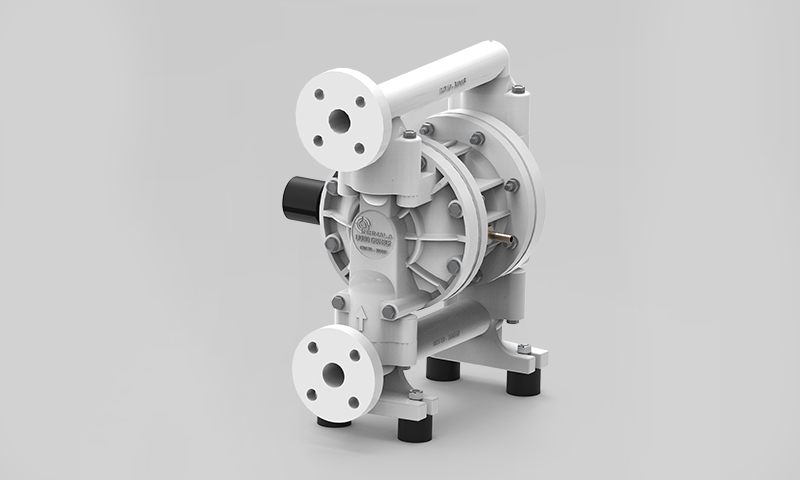

DATA SHEET FOR 300 PP AODD PUMP
| Pump Model 300 PP AODD | |
|---|---|
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Air Pressure | 8–8.6 bar |
| Max. Capacity | 105 LPM |
| Applications | Acids, Barrel Loading – Unloading Application |
| Liquid Inlet / Outlet | 1” |
| Air Inlet | 3/8” |
| Quantity | 1 |
| Suction Size | 1” |
| Discharge Size (mm) | 1” |
| Connections | BSP Threaded / Flange ASA-150 standard |
| Diaphragm | PTFE Diaphragm |
| NRV Ball | Teflon Ball |
| Pump Weight | 7.2 Kg |
| Pump Model 300 PP AODD | |
|---|---|
| Wetted Parts | Polypropylene |
| Outer Piston | Polypropylene |
| Centre Piston | MS Powder Coated |
| Air Valve (Non-Wetted Parts) | Polypropylene |
| Diaphragm | PTFE Diaphragm with Santoprene Backup |
| Valve Ball | PTFE |
| Valve Seat | Polypropylene |
| O Ring | PTFE / Neoprene |
| Pump Model 300 PP AODD | |
|---|---|
| Suction Lift Dry | 3.05 mtr (10’) |
| Suction Lift Wet | 4.89 mtr (16’) |
| Maximum Flow Rate | 105 LPM |
| Maximum Size Solids | 3.17 mm (0.125”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | 9.53 mm (3/8”) |
| Liquid Inlet | 25.40 mm (1”) |
| Liquid Outlet | 25.40 mm (1”) |
| Air Pressure (kg/cm²) | Head (Meter) | CFM | Capacity (L/min) | Capacity (m³/hr) |
|---|---|---|---|---|
| 2 | Open | 13 | 79 | 4.6 |
| 10 | 12 | 59 | 3.5 | |
| 3 | Open | 16 | 90 | 5.5 |
| 10 | 15 | 75 | 4.28 | |
| 20 | 14 | 47 | 1.20 | |
| 4 | Open | 19 | 103 | 6.40 |
| 10 | 18 | 88 | 5.20 | |
| 20 | 17 | 62 | 3.75 | |
| 30 | 16.5 | 37 | 2.10 | |
| 5 | Open | 21 | 104 | 6.90 |
| 10 | 21 | 97 | 5.80 | |
| 20 | 19 | 70 | 4.30 | |
| 30 | 18 | 54 | 3.10 | |
| 40 | 17 | 29 | 1.65 |
| Pump Model 300-PP-AODD | |
|---|---|
| P.P | 0˚C – 80˚C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
Get Reliable Chemical Handling with 1-inch PP AODD Pump
The 300 PP AODD Pump from Nirmala Pumps is a reliable solution for handling corrosive and chemical fluids. This model is widely searched as a 1-inch PP AODD pump for industrial use. Designed with strong parts, it offers long life, smooth flow, and easy maintenance. Our pump focuses on durability, leak-free operation, and safe fluid transfer. The pump is easy to use, works well for long hours, and does not need frequent maintenance. Its simple design helps in handling different types of fluids without trouble. We are one of the trusted 1-inch AODD Pump manufacturers in India.
If your work requires a heavy-duty 1″ PP AODD pump, this unit is designed to handle everything from aggressive chemicals to thick slurries. As leading 1-inch AODD Pump suppliers in India , we offer the best features in our pumps to ensure our products stand up to the competition.
