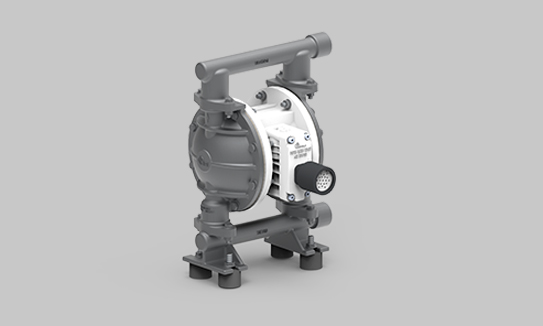

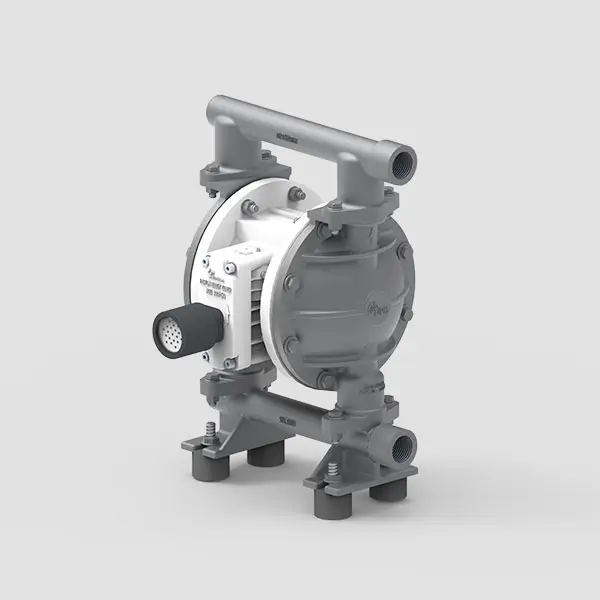

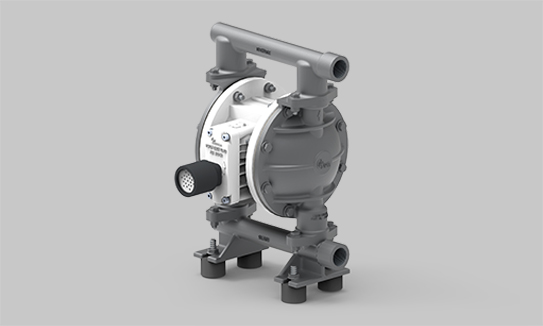

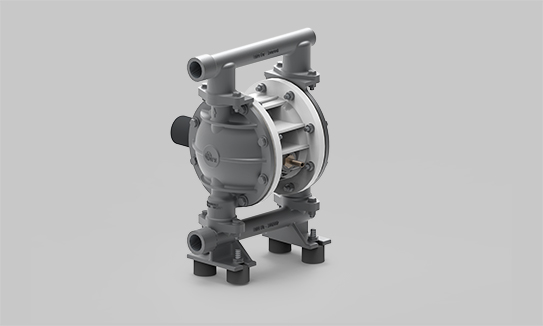

DATA SHEET FOR 300 SS AODD PUMP
| Pump Model 300 SS AODD | |
|---|---|
| Quantity | 1 |
| Applications | Solvents, Mix Aqueous, Barrel Loading – Unloading Transfer Application |
| Air Pressure | 8–8.6 bar |
| Max. Capacity | 105 LPM |
| Air Inlet | 3/8” |
| Liquid Inlet / Outlet | 1” |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 1” |
| Discharge Size | 1” |
| Connections | BSP Threaded |
| Diaphragm | PTFE Diaphragm |
| NRV Ball | PTFE Ball |
| Pump Weight | 19.5 Kg |
| Pump Model 300 SS AODD | |
|---|---|
| Wetted Parts | SS 316 |
| Outer Piston | SS 316 |
| Center Piston | MS Powder Coated |
| Air Valve Assembly (Non Wetted) | Polypropylene / Aluminium |
| Diaphragm | PTFE Diaphragm With Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat (Check Valve) | SS 316 |
| O Ring | PTFE |
| Pump Model 300 SS AODD | |
|---|---|
| Suction Lift Dry | 3.05 mtrs (10’) |
| Suction Lift Wet | 4.89 mtrs (16’) |
| Maximum Flow Rate | 105 LPM |
| Maximum Size Solids | 3.17 mm (0.125”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | 9.53 mm (3/8”) |
| Liquid Inlet | 25.40 mm (1”) |
| Liquid Outlet | 25.40 mm (1”) |
| Air Pressure (KG/CM²) | Head (Meter) | CFM | Capacity (LT/MN) | M³/HR |
| 2 | Open | 8 | 55 | 3.30 |
| 10 | 8.5 | 34 | 2.04 | |
| 3 | Open | 15 | 71 | 4.26 |
| 10 | 14 | 50 | 3.00 | |
| 20 | 18 | 38 | 2.28 | |
| 4 | Open | 14 | 86 | 5.16 |
| 10 | 17 | 66 | 3.96 | |
| 20 | 25 | 54 | 3.30 | |
| 30 | 23 | 47 | 2.58 | |
| 5 | Open | 17 | 105 | 6.06 |
| 10 | 15 | 89 | 5.34 | |
| 20 | 19 | 71 | 4.26 | |
| 40 | 23 | 44 | 2.64 | |
| 30 | 20 | 59 | 3.54 |
| Pump Model 300-SS-AODD | |
|---|---|
| P.P | 0˚C – 80˚C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |

Robustly Constructed 1-inch SS AODD Pump
At Nirmala Pumps, we design and build high-quality 300 SS AODD pumps using durable raw materials and latest technology. Our high-grade 1-inch SS AODD pump is built to take on the tough jobs—whether you’re moving thick chemicals or sensitive fluids that need gentle handling. As prominent 1-inch SS AODD Pump suppliers in India, we don’t just sell you a machine; we provide a pumping solution that keeps your production line moving without a hitch.
You get standard, reliable features in our SS pumps like self-priming tech and a portable design. We focus on making sure our stainless steel bodies are rugged enough to last years, even in harsh environments. Our 1″ SS AODD pump is suitable for chemicals, oils, slurry, and other industrial liquids where steady performance is required. We are among trusted 1-inch SS AODD Pump manufacturers in India, that follow industry-accepted designs and quality standards.
