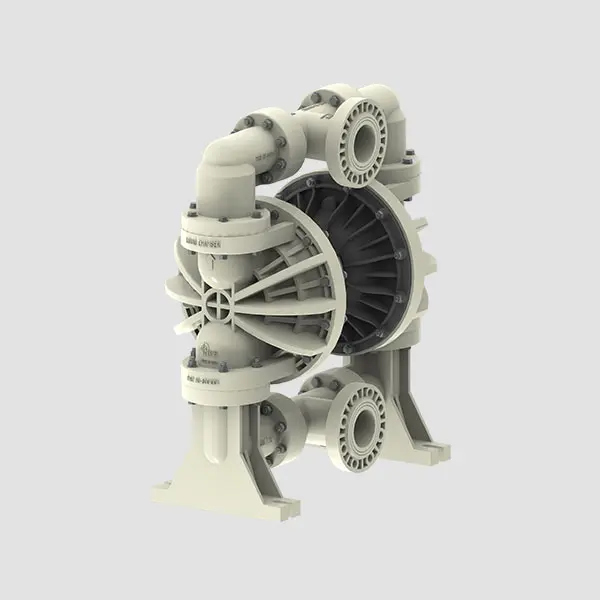

DATA SHEET FOR 800 PVDF AODD PUMP
| Pump Model AOD 800 PVDF | |
|---|---|
| QUANTITY | 1 |
| APPLICATIONS | Acids,Caustics, Solvents,Highly Abrasives Application |
| Capacity | 1041 L/min |
| Air Pressure | 8.4bar |
| Air Inlet | 3/4” BSP/NPT |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 3” |
| Discharge Size | 3” |
| Connection | Flange End as per ASA-150 |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| NRV Ball | PTFE |
| Pump Model AOD 800 PVDF | |
|---|---|
| Maximum Flow Rate | 1041 L/min |
| Max. Head | 84 m |
| Max. Suction Height | 7.6 m |
| Maximum Size Solids | 6.35 mm (0.250”) |
| Maximum Air Pressure | 8.06 bar |
| Pump Model AOD 800 PVDF | |
|---|---|
| Wetted Parts | PVDF |
| Outer Piston | PVDF |
| Centre Piston (Holding Plate) | Aluminium |
| Air Valve Assembly | Aluminium |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat | PVDF |
| O Ring | PTFE |
| Pump Model AOD 800 PVDF | |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
Get Reliable Flow With Our
800 PVDF AODD Pump
Dealing with harsh chemicals or abrasive liquids is never easy, but the 800 PVDF AODD Pump from Nirmala Pumps makes the job much smoother. This pump is a standout in our PVDF AODD Pumps lineup, specifically built for those who can’t afford downtime caused by corrosion or leaks. The pump is built for industries that deal with harsh and corrosive chemicals. This 3-inch PVDF AODD pump is widely used in chemical plants, pharmaceuticals, water treatment, and processing units.
Our 3″ PVDF AODD pump is valued for its strong build, smooth operation, and reliable performance in demanding conditions. We are counted among reliable 3-inch PVDF AODD Pump manufacturers in India, offering cost-effective pumping solutions with consistent support.
As top 3-inch PVDF AODD Pump suppliers in India, we have built our reputation on quality that lasts. If you’re struggling with pumps that leak or corrode when handling harsh acids, our 800 PVDF AODD Pump is going to be a game-changer for you.
