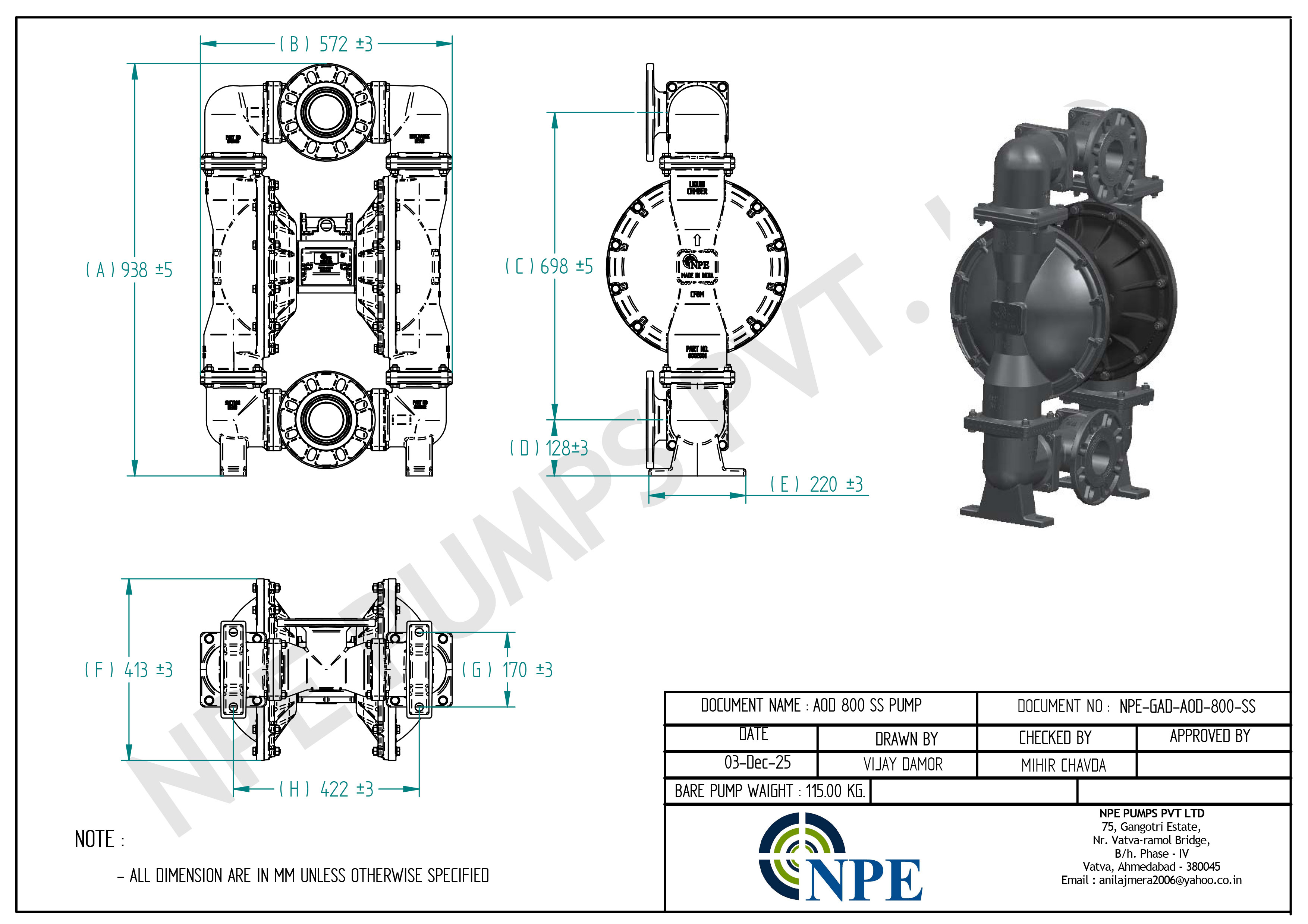

DATA SHEET FOR 800 SS AODD PUMP
| Pump Model AOD 800 SS | |
|---|---|
| QUANTITY | 1 |
| APPLICATIONS | Acids,Caustics, Solvents,Highly Abrasives Application |
| Capacity | 1041 L/min |
| Air Pressure | 8.4bar |
| Air Inlet | 3/4” BSP/NPT |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 3” |
| Discharge Size | 3” |
| Connection | Flange End as per ASA-150 |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| NRV Ball | PTFE |
| Pump Model AOD 800 SS | |
|---|---|
| Maximum Flow Rate | 1041 L/min |
| Max. Head | 84 m |
| Max. Suction Height | 7.6 m |
| Maximum Size Solids | 6.35 mm (0.250”) |
| Maximum Air Pressure | 8.06 bar |
| Pump Model AOD 800 SS | |
|---|---|
| Wetted Parts | SS304/SS316L |
| Outer Piston | SS304/SS316L |
| Centre Piston (Holding Plate) | Aluminium |
| Air Valve Assembly | Aluminium |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat | SS304/SS316L |
| O Ring | PTFE |
| Pump Model AOD 800 SS | |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |

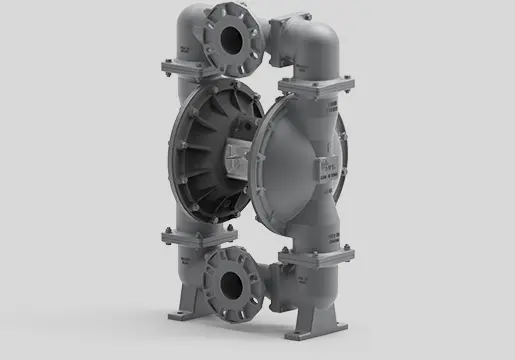

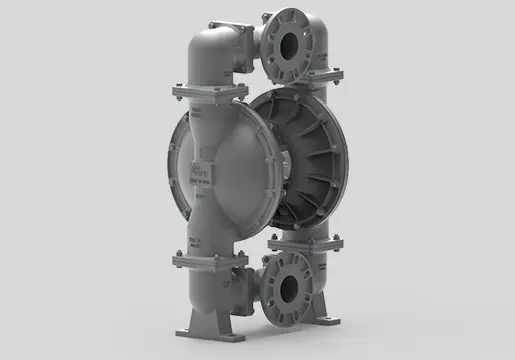

Robustly Constructed 3-inch SS AODD Pump
At Nirmala Pumps, we design and build high-quality 800 SS AODD pumps using durable raw materials and latest technology. Our high-grade 3-inch SS AODD pump is built to take on the tough jobs—whether you’re moving thick chemicals or sensitive fluids that need gentle handling. As prominent 3-inch SS AODD Pump suppliers in India, we don’t just sell you a machine; we provide a pumping solution that keeps your production line moving without a hitch.
You get standard, reliable features in our SS pumps like self-priming tech and a portable design. We focus on making sure our stainless steel bodies are rugged enough to last years, even in harsh environments. Our 3″ SS AODD pump is suitable for chemicals, oils, slurry, and other industrial liquids where steady performance is required. We are among trusted 3-inch SS AODD Pump manufacturers in India, that follow industry-accepted designs and quality standards.
