Leading Ball Type Non-Return Valves Manufacturers In India

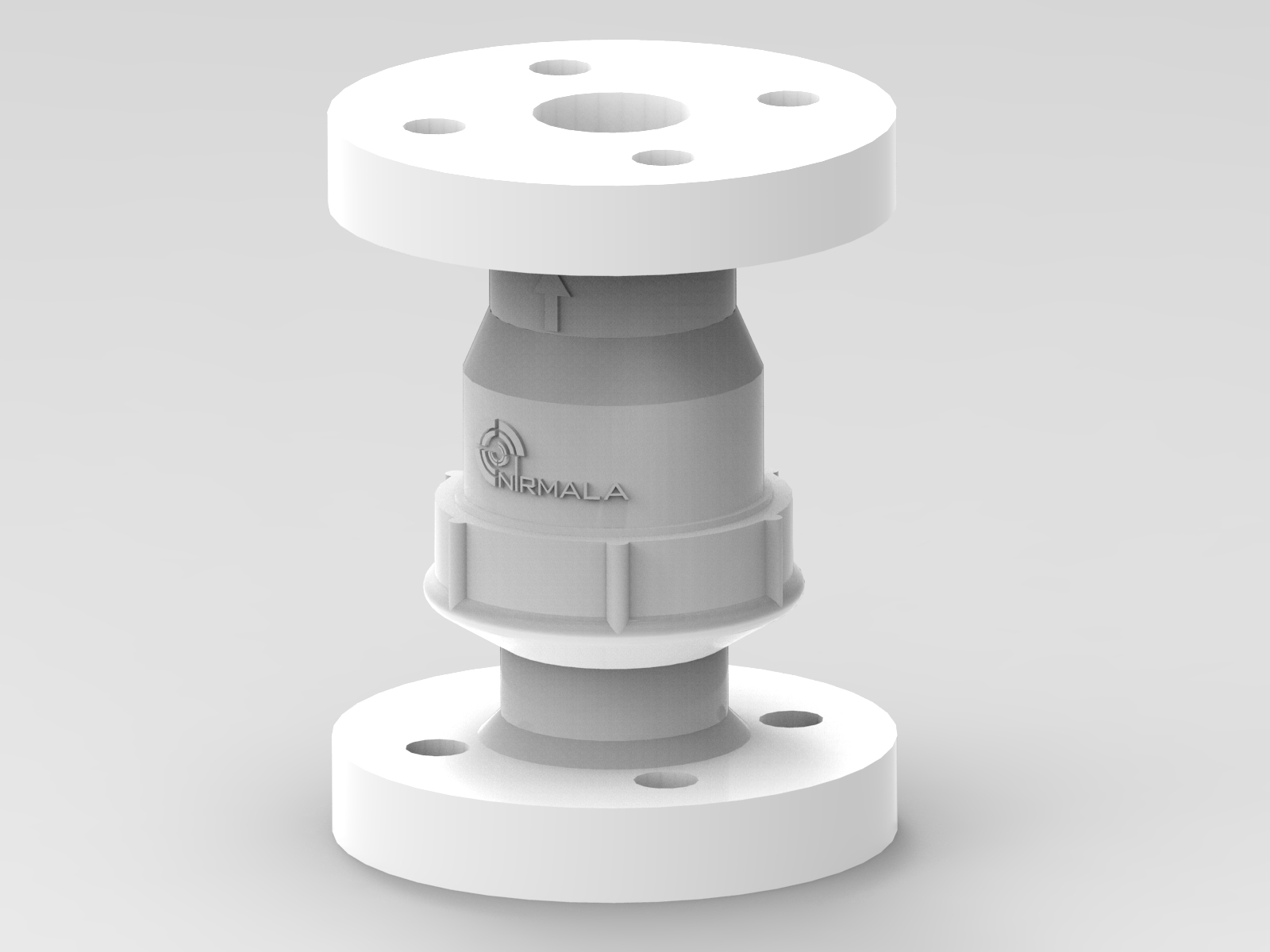

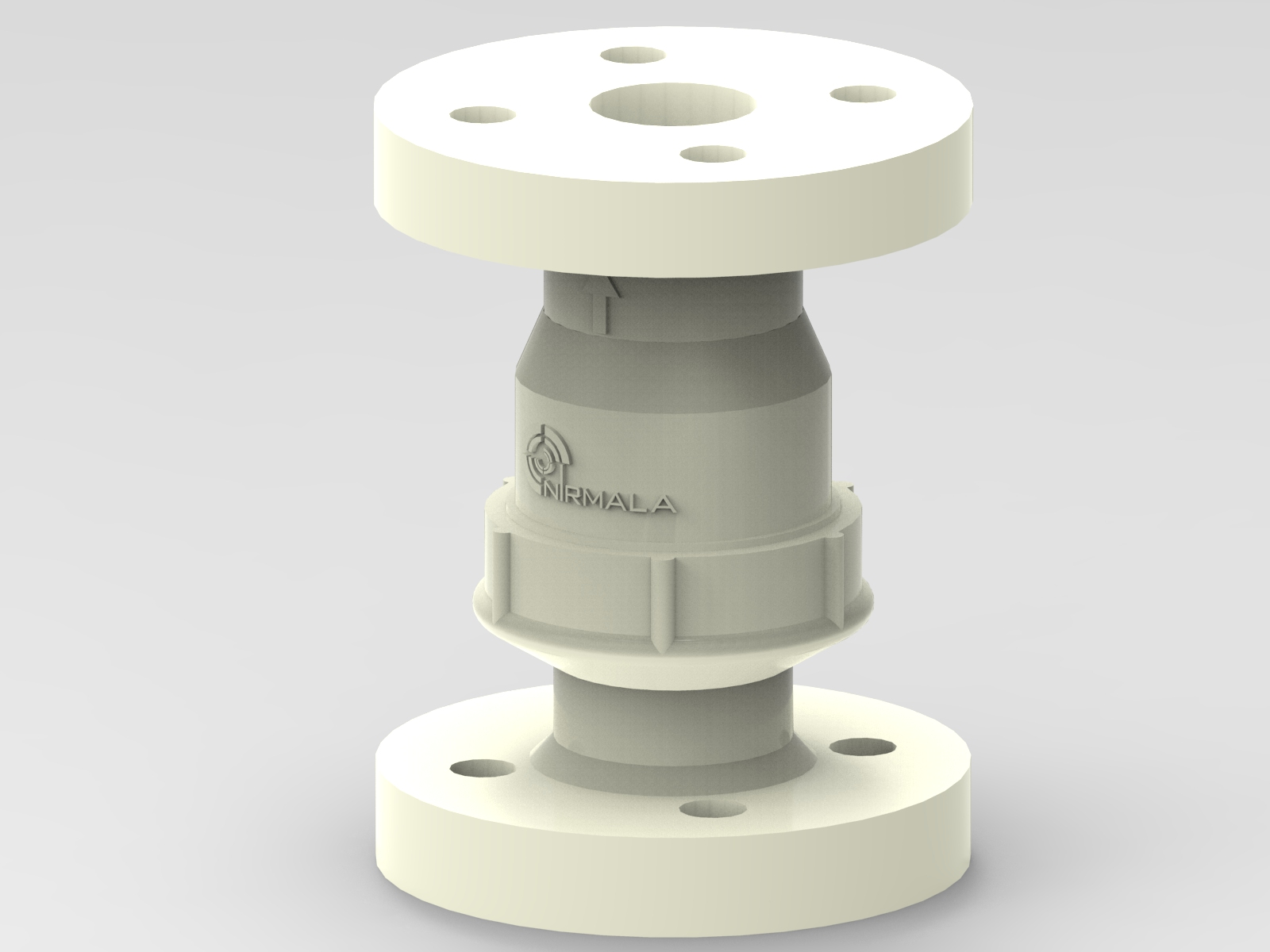

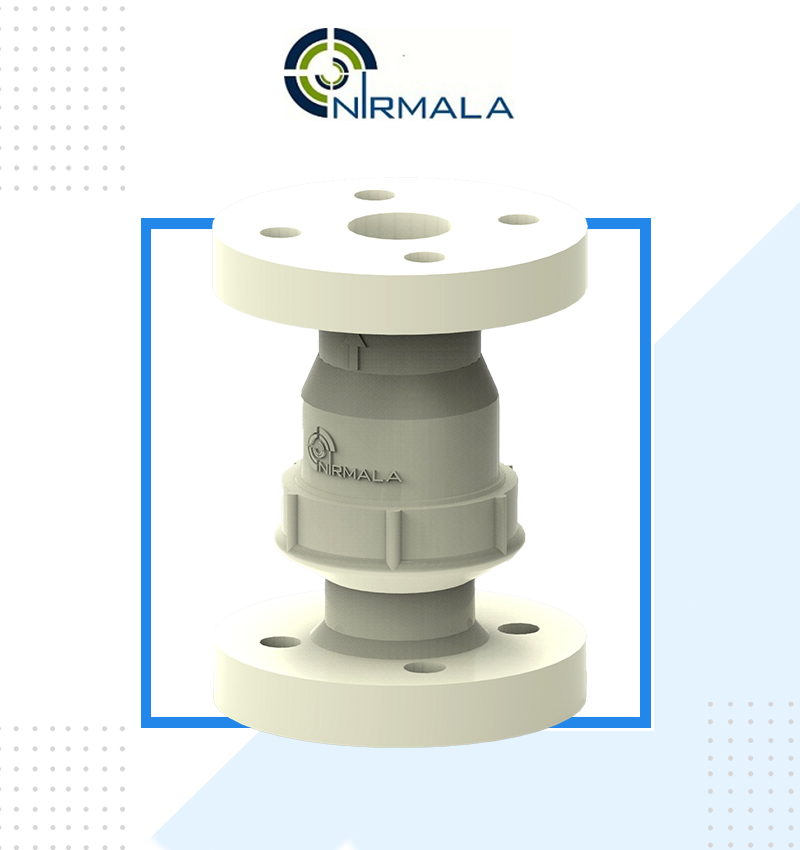

Ball Type Check Valves (NRV), a very simple and robust design with no mechanism involved. The heart of the valve is PP/PVDF ball. The mechanism hinge-pin-disc used in conventional check valves is eliminated.

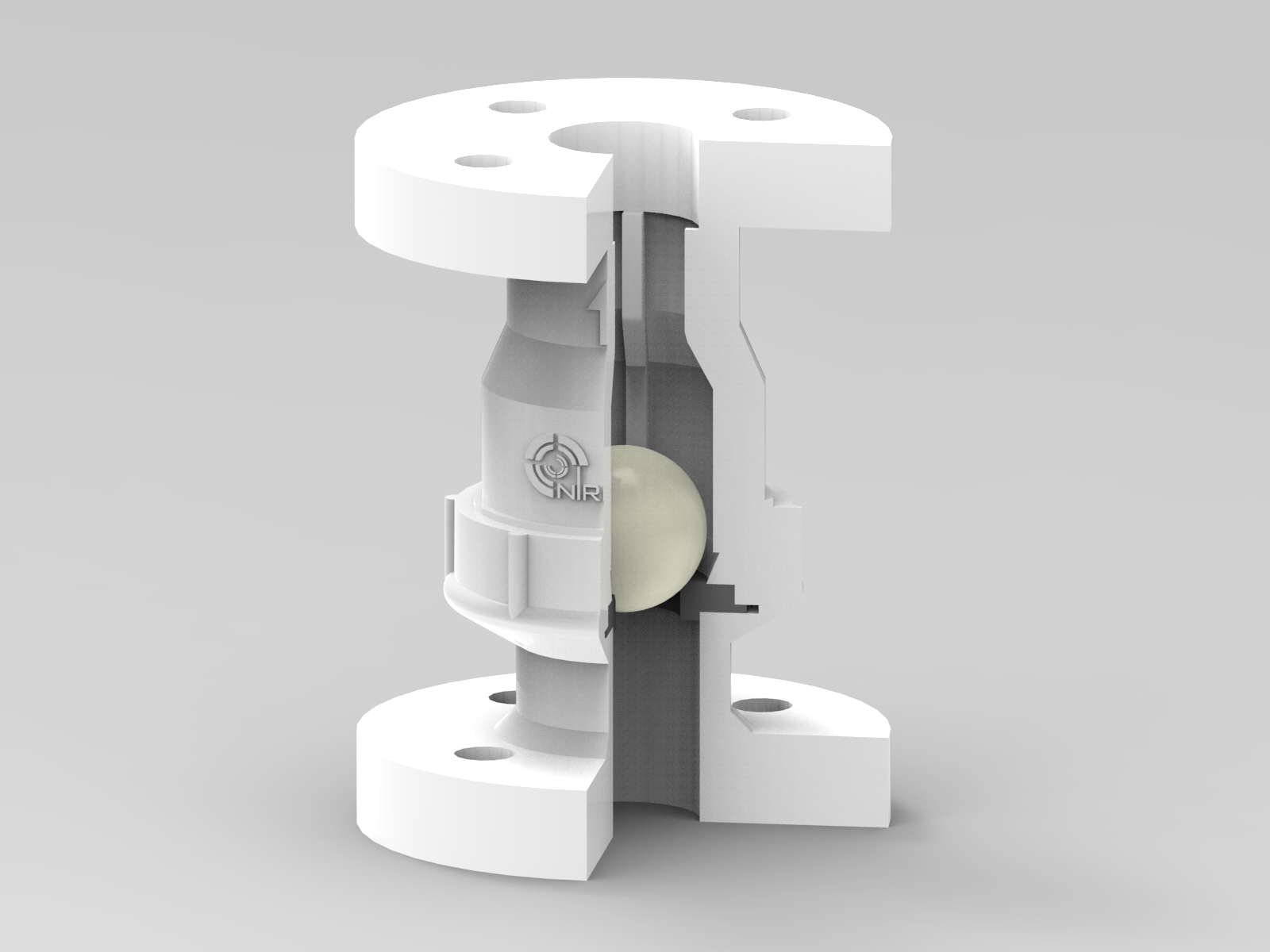

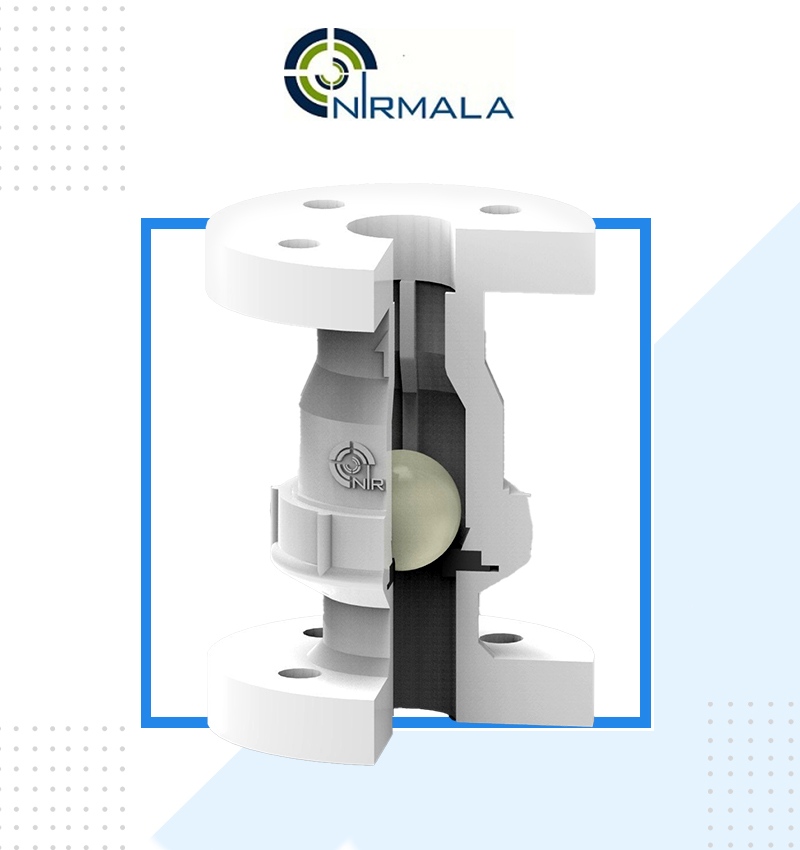

As the pump starts, the ball moves out totally from the flow path when the pumping is on giving a full bore maximum flow/discharge with minimum head losses. As the pump stops, the ball rolls back and seats perfectly on the rounded valves seat ensuring totally leak proof sealing.
DATA SHEET FOR Ball Type Non-Return Valves
Salient Features
Applications
Salient Features
- The lowest possible pressure drop across the valves.
- 100% leak-proof sealing years over years.
- Non-clogging and self-cleaning as the ball rotates during operation.
- Virtually no wear and tear, no maintenance, and longer service life.
- Higher solid handling capacity due to full bore and straight internal path.
- Lower head loss-high discharge, reduced pumping time-All leading to Energy Saving.
Applications
- Clean water
- Raw water
- Sewage
- Slurry
- Wastewater
- Viscous liquids etc.
Used in industries like:
Plumbing, Water distribution, Water/Sewage treatment, Irrigation/agriculture, Sewage plants, Steel mills,Powerstations,Chemical/process industries, HVAC, Sugar/food industry and many more.
