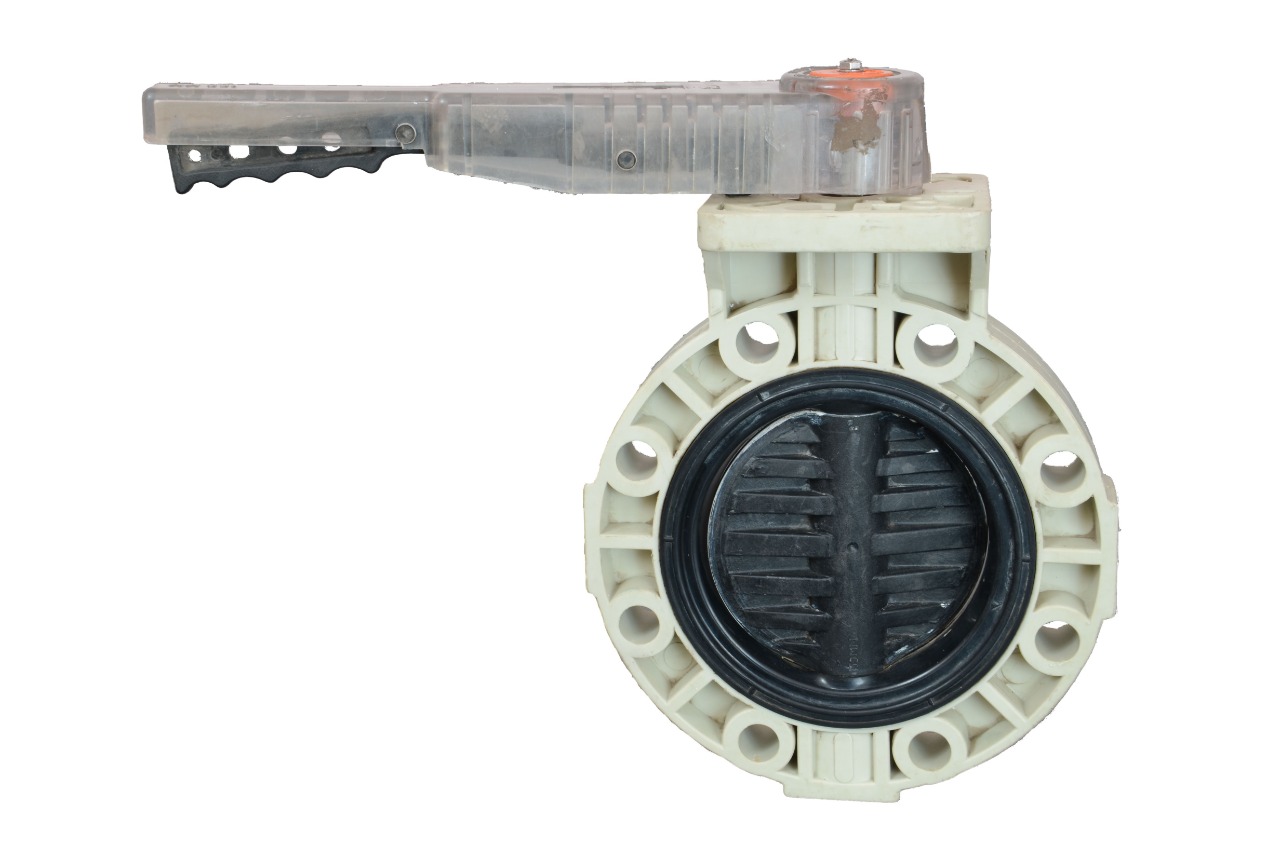

DATA SHEET FOR PP BUTTERFLY VALVE LEVER OPERATED
Material Specification
Features
Pressure Rating
Drilling Standards
Temperature Limits
Dimensions
Material Specification
| SR. NO. | PART | MATERIAL | QUANTITY |
| 1 | Body | Polypropylene | 1 |
| 2 | Disk | Polypropylene | 1 |
| 3 | Stem O Ring | Neoprene | 2 |
| 4 | Stem | SS | 1 |
| 5 | Hinge Pin | SS | 1 |
| 6 | Cap | SS | 1 |
| 7 | Handle | Polypropylene | 1 |
| 8 | Spring | SS | 1 |
| 9 | Handle Pin | SS | 1 |
| 10 | Positioner Lever | SS | 1 |
| 11 | Handle Cap | Polypropylene | 1 |
| 12 | Stud Nut & Washer | SS | 1 |
Features
- Manufactured from Poly Propylene
- A Chemically inert Thermoplastic.
- Protective and Resistive from Most of the Corrosive Chemicals.
Pressure Rating
- Test Pressure- 10kg upto 4”, 6kg above 4”
- Maximum working Pressure- 10kg/cm2
- Body- 15kg/cm2
Drilling Standards
- ASA #150
Temperature Limits
- PPCP-Polypropylene Co-Polymer- Upto 900 c

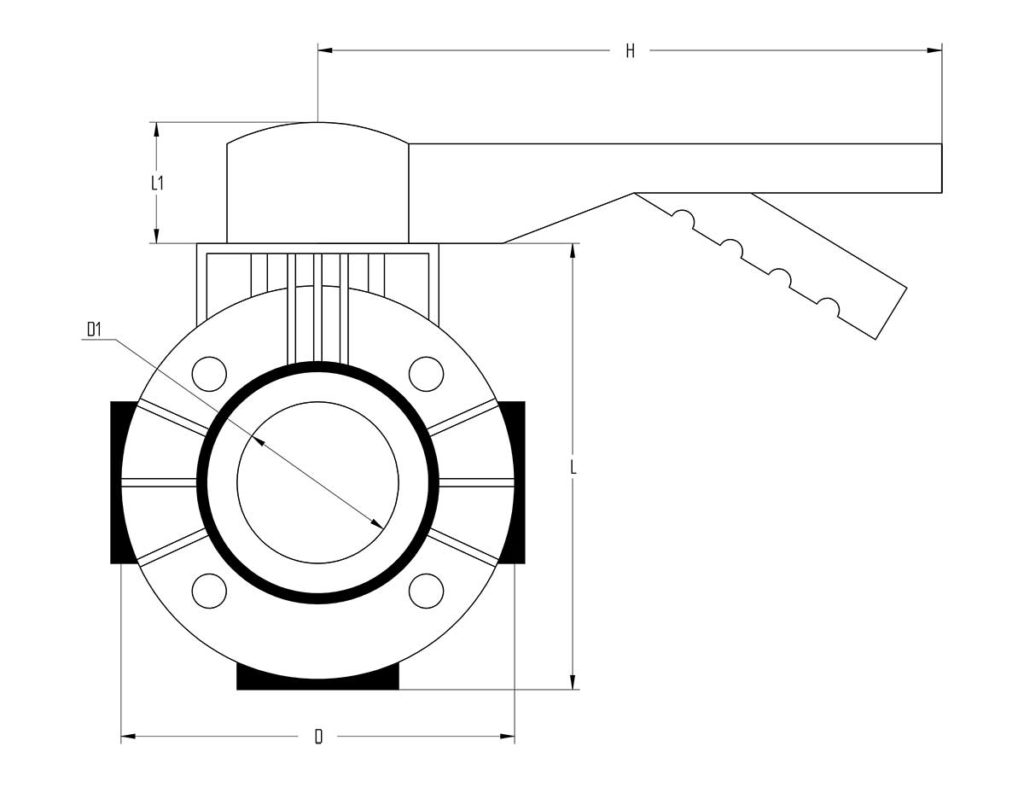

Dimensions
| SIZE | D | D1 | H | T | L | L1 | PCD (ASA #150) | ||
| PCD | Dia of Hole | No. of Hole | |||||||
| 50MM | 2” | 165 | 52 | 258 | 49 | 190 | 120 | 17 | 4 |
| 65MM | 2 ½” | 186 | 66 | 258 | 50 | 217 | 140 | 17 | 4 |
| 80MM | 3” | 195 | 80 | 309 | 49 | 221 | 152 | 17 | 4 |
| 100MM | 4” | 232 | 100 | 309 | 53 | 226 | 191 | 17 | 8 |
| 150MM | 6” | 281 | 150 | 391 | 66 | 331 | 241 | 18 | 8 |
| 200MM | 8” | 343 | 200 | 390 | 66 | 394 | 295 | 18 | 8 |
