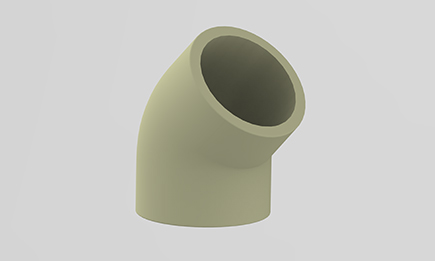

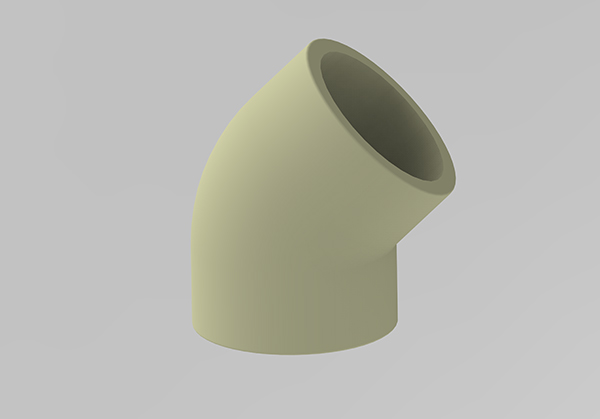

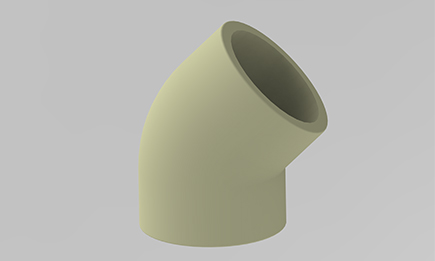

DATA SHEET FOR PPH Bend 45 Degree

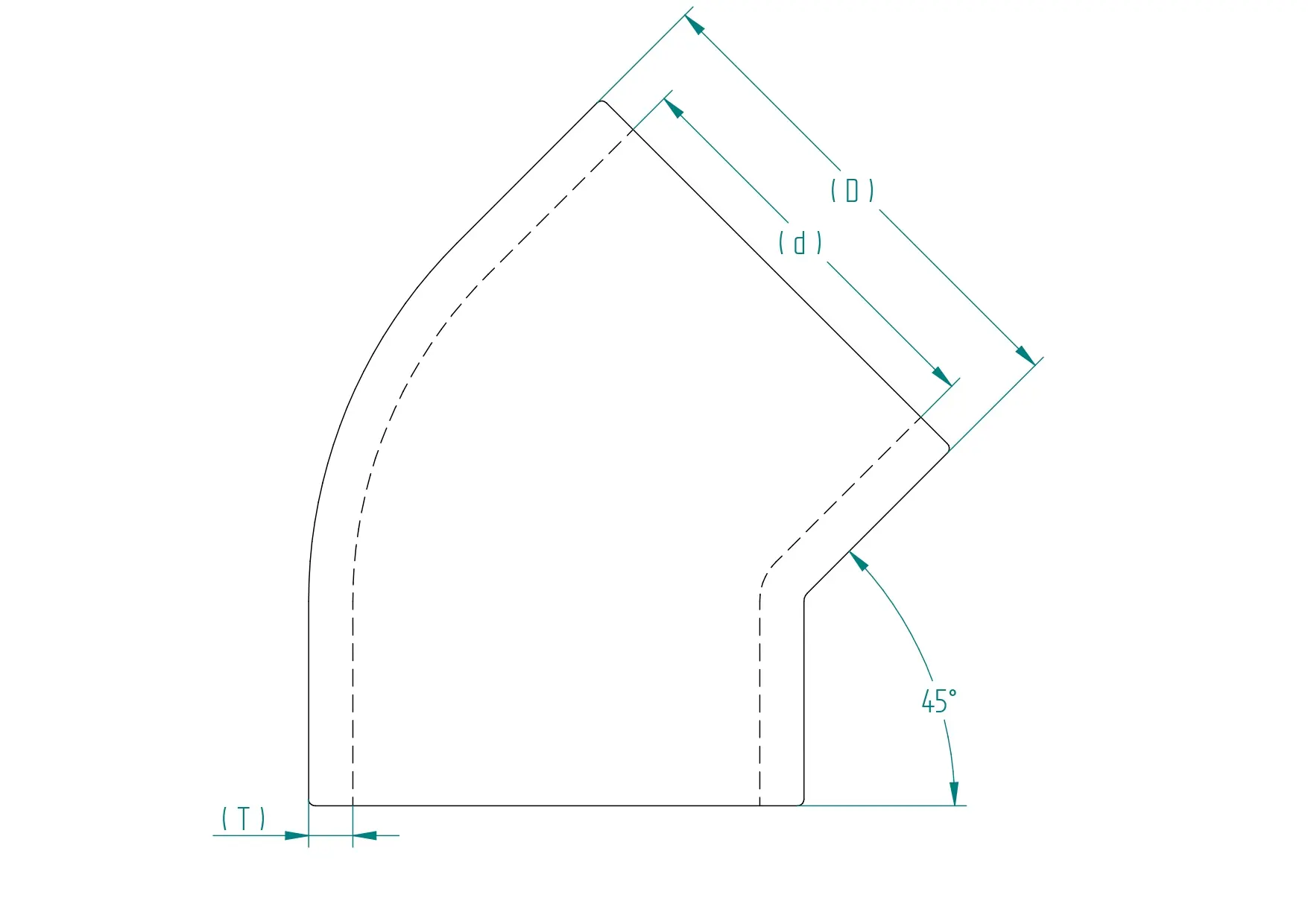

Dimensions for PPH Bend 45 Degree
Dimensions for PPH Bend 45 Degree
| SIZE | ( D ) | ( d ) | ( T ) | H | |
|---|---|---|---|---|---|
| MM | INCH | ||||
| 20 | 1/2″ | 27 | 19 | 4 | 25.5 |
| 25 | 3/4″ | 33 | 24 | 4.5 | 29.5 |
| 32 | 1″ | 41 | 31 | 5 | 35 |
| 50 | 1.5″ | 61 | 48.7 | 6.1 | 49.5 |
| 63 | 2″ | 76 | 61.6 | 7.2 | 60 |
| 90 | 3″ | 109 | 87.5 | 10.7 | 90 |
| 110 | 4″ | 130 | 108.3 | 10.8 | 101 |
