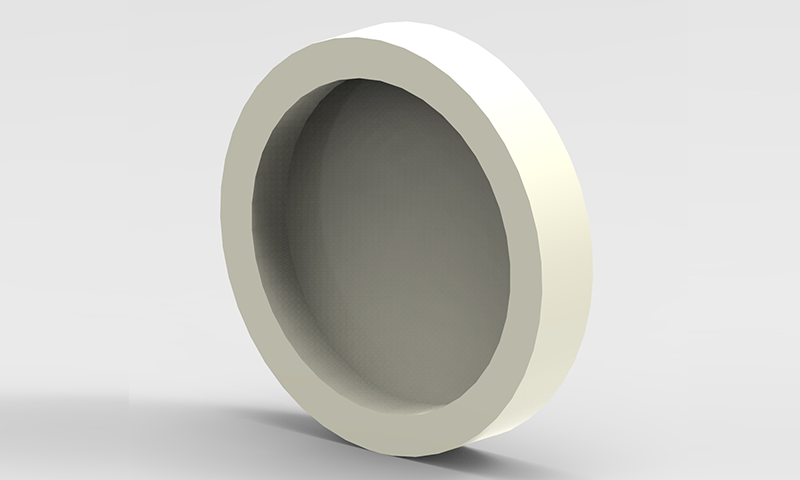

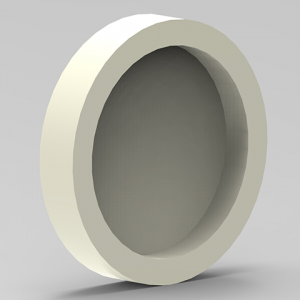

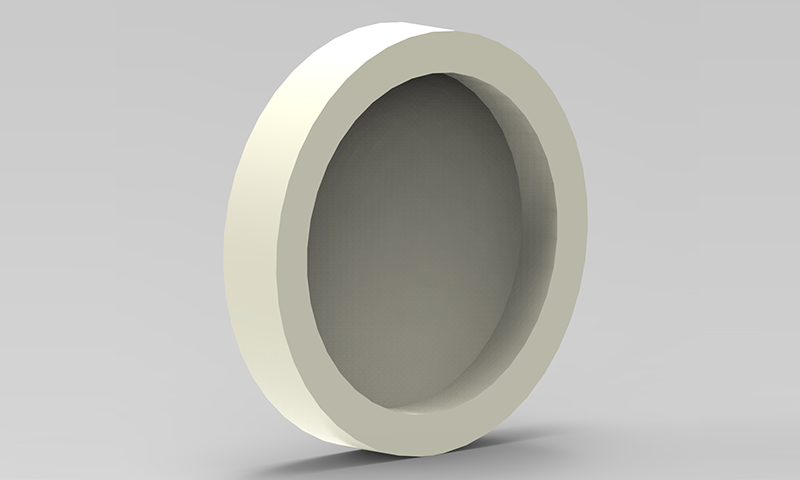

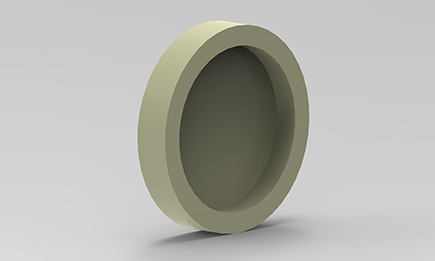

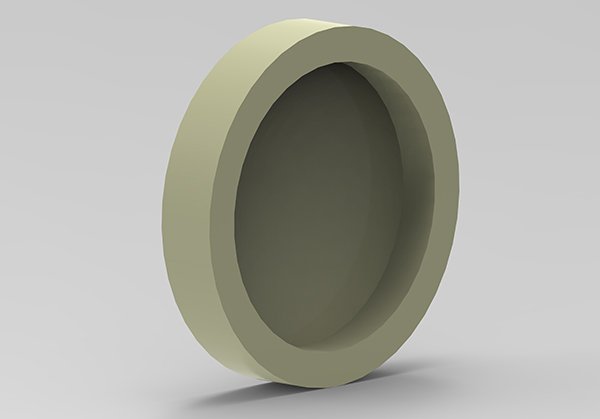

PPH End Cap
PPH End Cap
DATA SHEET FOR PPH End Cap

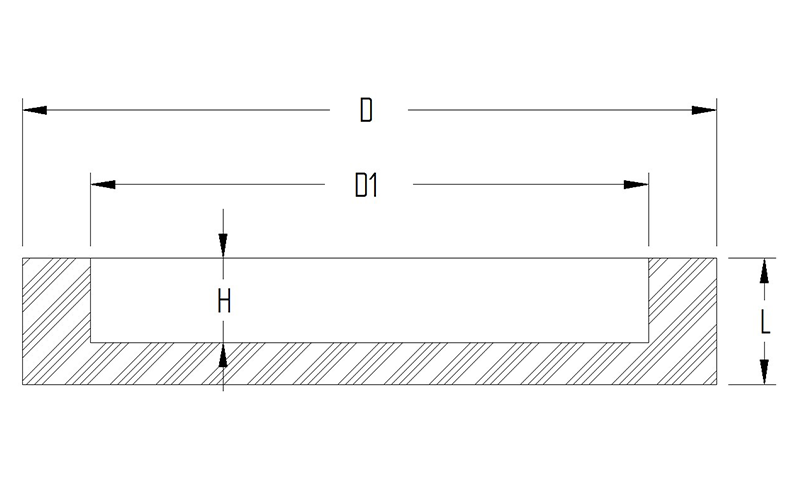

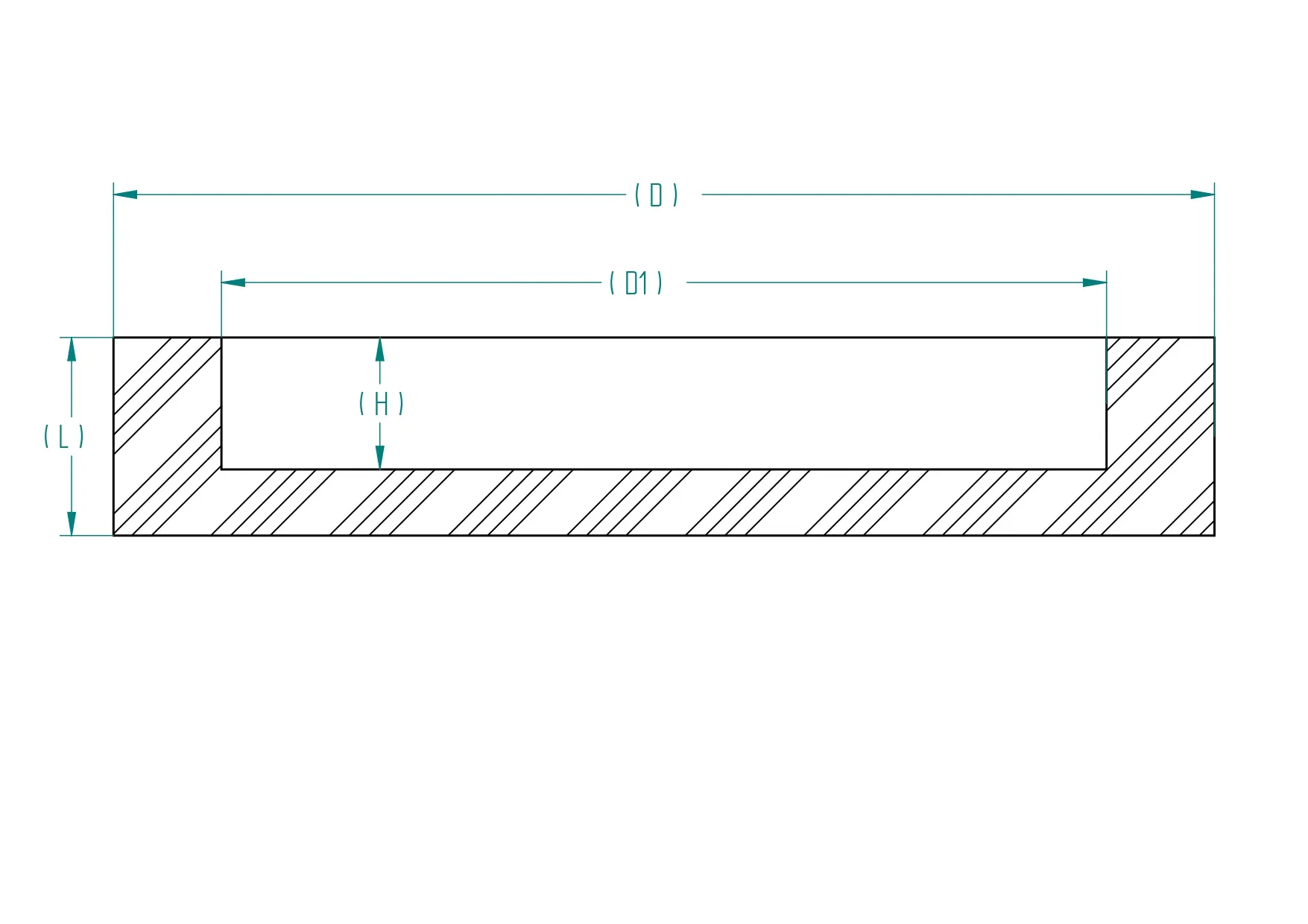

Dimensions for PPH End Cap
Dimensions for PPH End Cap
| PPH END CAP | |||||
|---|---|---|---|---|---|
| SIZE | D | D1 | H | L | |
| INCH | MM | ||||
| ½” | 20 | 20 | 15 | 15 | 20 |
| ¾” | 25 | 25 | 20 | 15 | 20 |
| 1″ | 32 | 32 | 25 | 17 | 22 |
| 1 ¼” | 40 | 40 | 32 | 13 | 20 |
| 1 ½” | 50 | 50 | 39 | 18 | 25 |
| 2″ | 63 | 63 | 49 | 16 | 26 |
| 2 ½” | 75 | 75 | 61 | 21 | 27 |
| 3″ | 90 | 90 | 70 | 18 | 28 |
| 4″ | 110 | 110 | 85 | 23 | 30 |
| 6″ | 160 | 160 | 128 | 12 | 22 |
