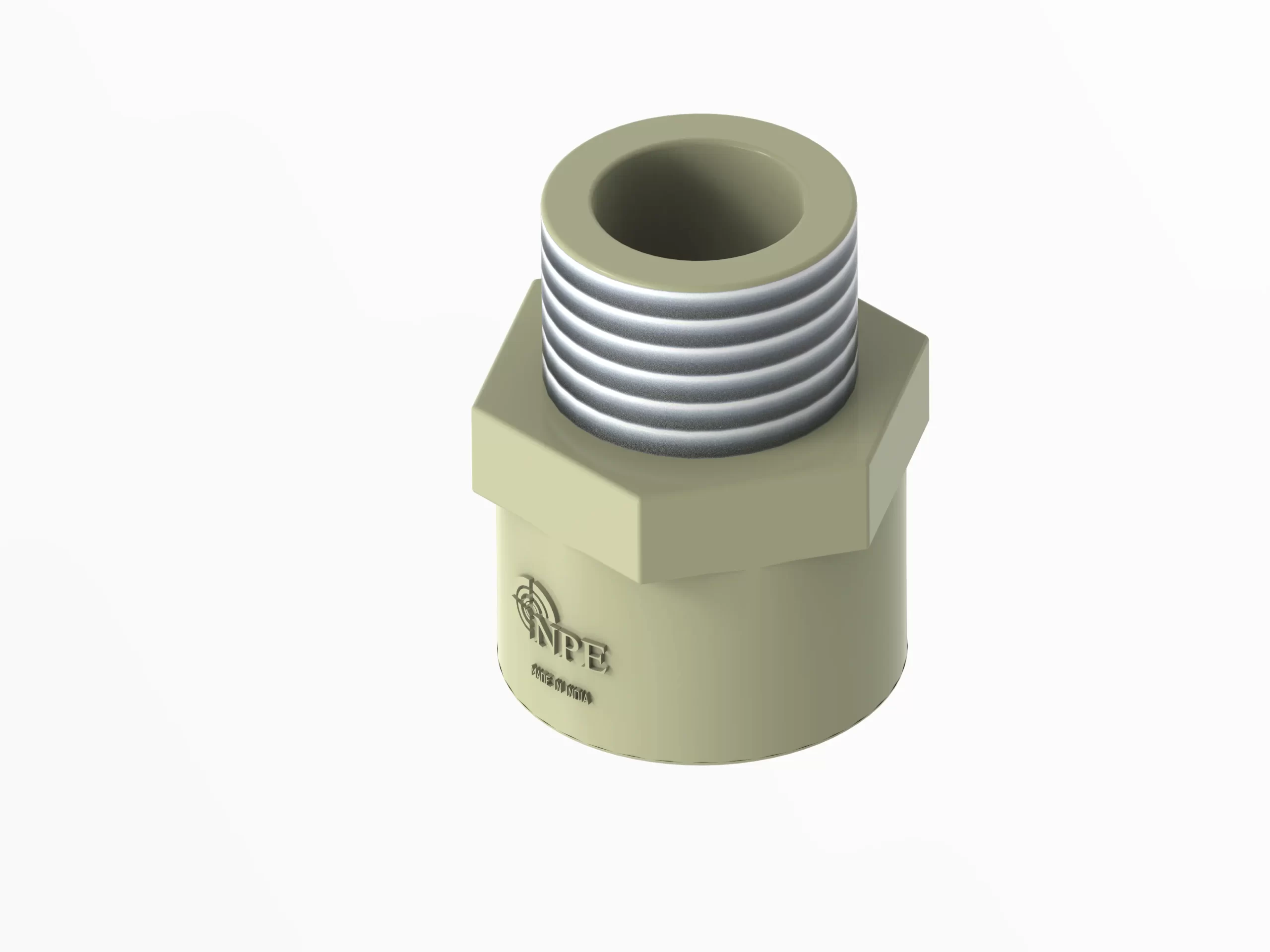

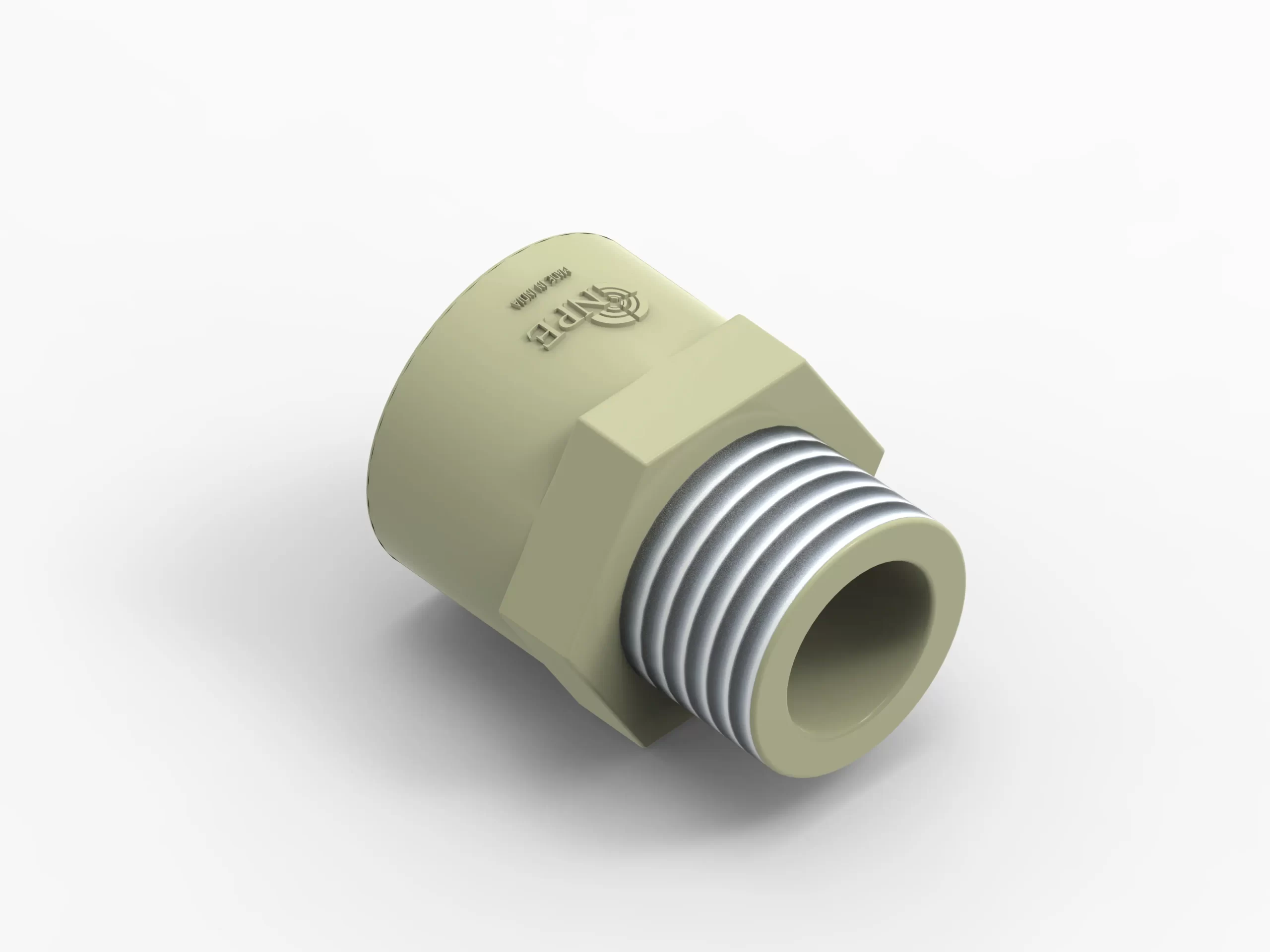

DATA SHEET FOR PPH Male Thread Adaptor

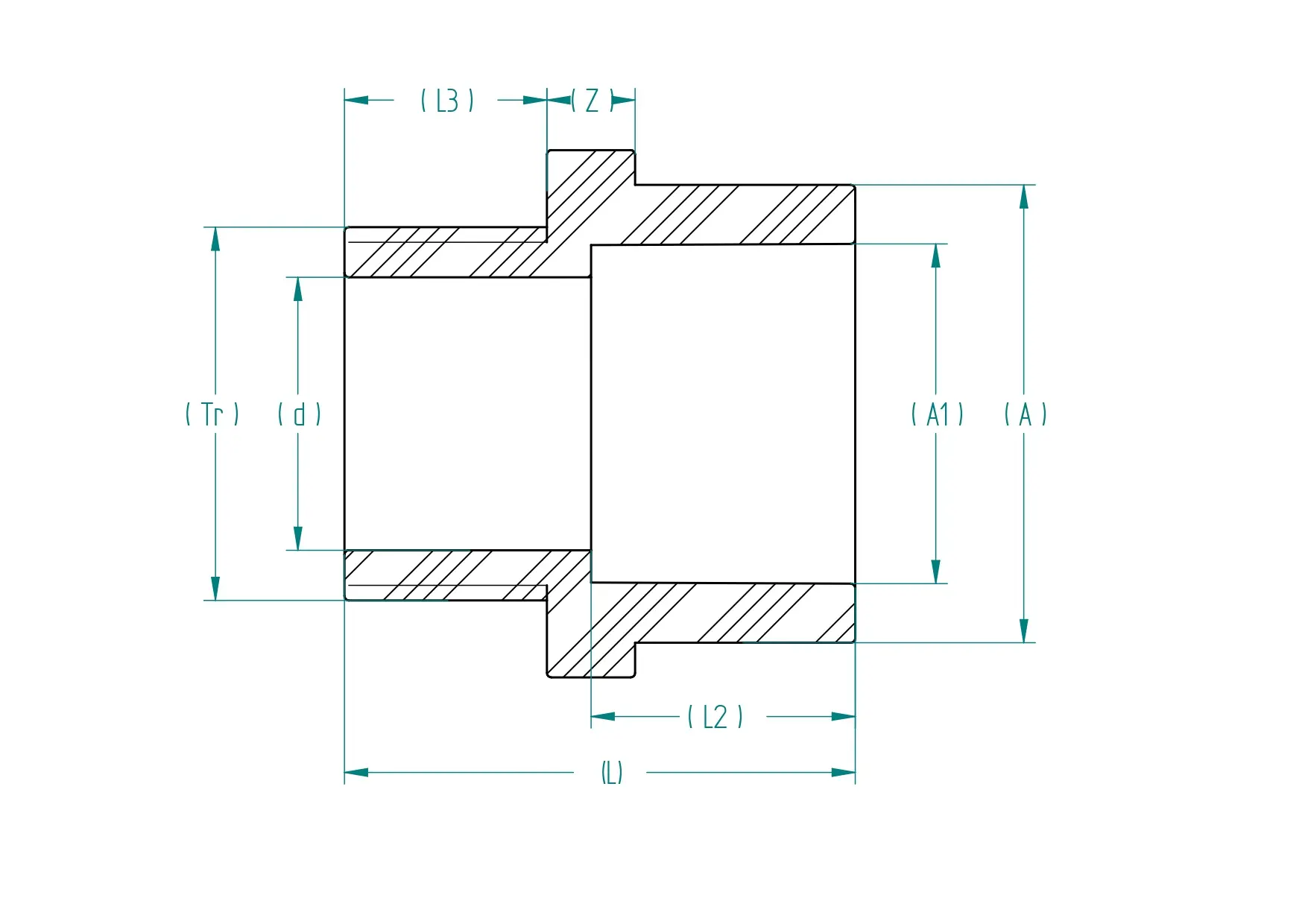

Dimensions for PPH Male Thread Adaptor
Dimensions for PPH Male Thread Adaptor
| PPH MALE THREAD ADAPTOR | ||||||
|---|---|---|---|---|---|---|
| SIZE | A | A1 | d | Tr (BSP, NPT) | L | L2 |
| 1/2″ | 29 | 19 | 13 | 1/2″ | 40 | 20 |
| 3/4″ | 35 | 24 | 18 | 3/4″ | 48 | 24 |
| 1″ | 44 | 31 | 24 | 1″ | 53 | 28 |
| 1 1/4″ | 52 | 39 | 31 | 1 1/4″ | 58 | 29 |
