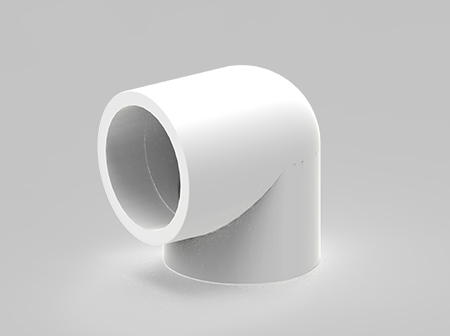

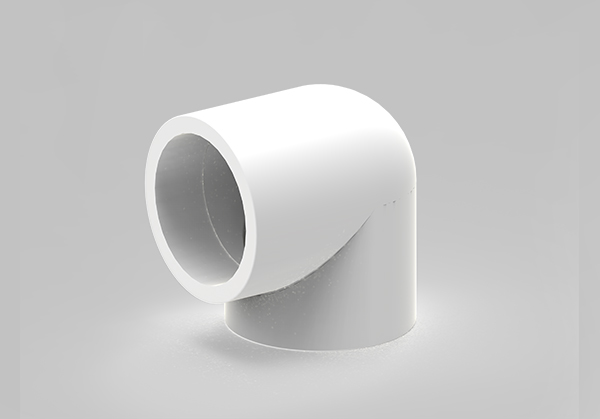

PVDF Bend 90 Degree
PPH Bend 90 Degree
DATA SHEET FOR PVDF Bend 90 Degree

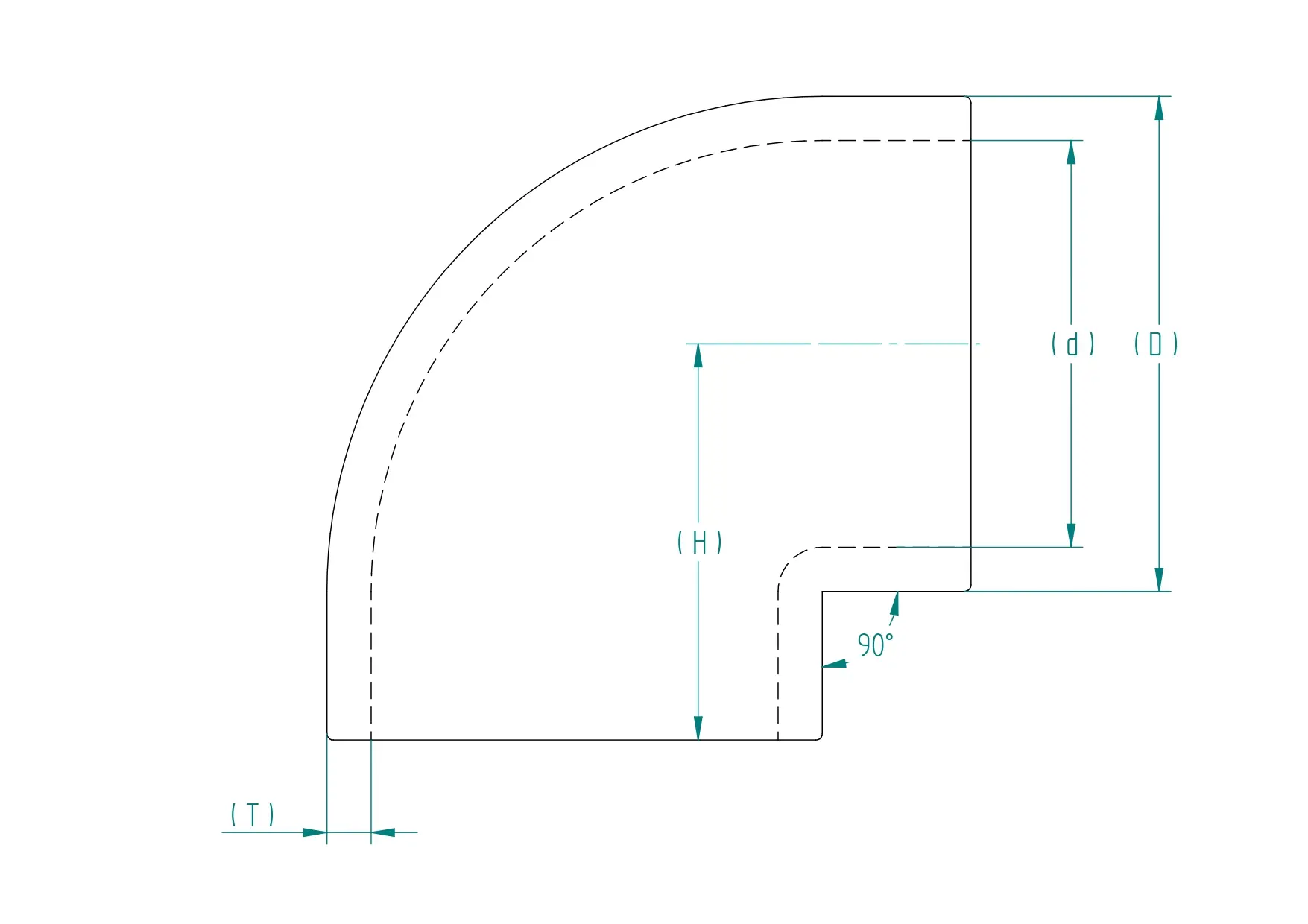

Dimensions for PVDF Bend 90 Degree
Dimensions for PVDF Bend 90 Degree
| Size | A | B | C | D | E | |
|---|---|---|---|---|---|---|
| INCH | MM | |||||
| 1/2″ | 20 | 27.5 | 19.3 | 25.5 | 14.5 | 4 |
| 3/4″ | 25 | 33 | 24.1 | 29.5 | 16 | 4.5 |
| 1″ | 32 | 41.3 | 31.1 | 35 | 18 | 4.9 |
| 1 1/4″ | 40 | 50 | 39 | 41.5 | 20.5 | 5.6 |
| 1 1/2″ | 50 | 63 | 49 | 49.5 | 23.5 | 7.1 |
| 2″ | 63 | 78 | 61.6 | 60 | 27.5 | 8.2 |
| 2 1/2″ | 75 | 91.5 | 73.4 | 78 | 33 | 8.8 |
| 3″ | 90 | 111 | 87.5 | 89 | 35.5 | 11.3 |
| 4″ | 110 | 135 | 108 | 93 | 36 | 13 |
