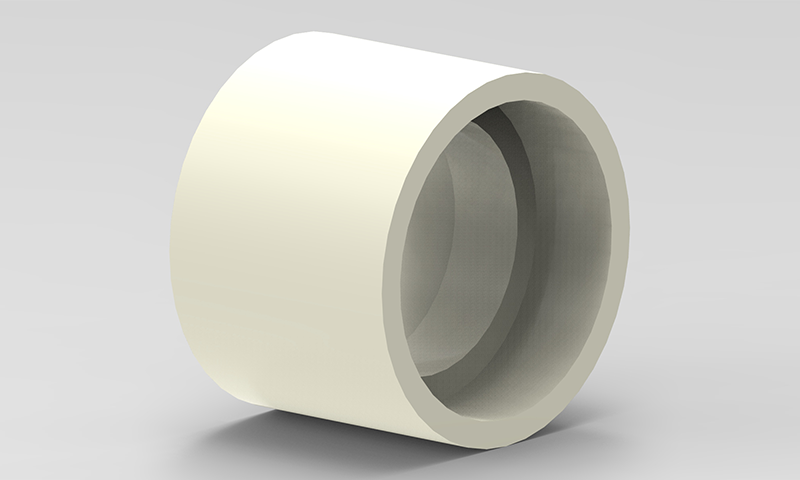

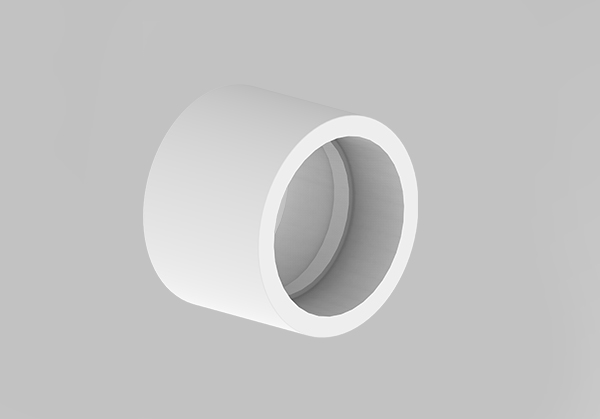

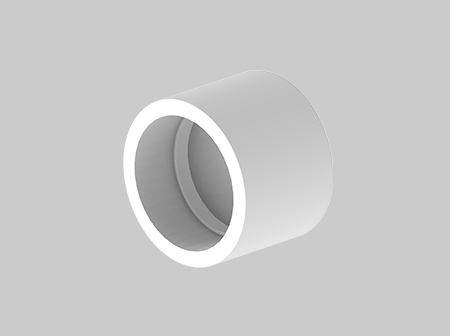

PVDF Coupler
PVDF Coupler
DATA SHEET FOR PVDF Coupler

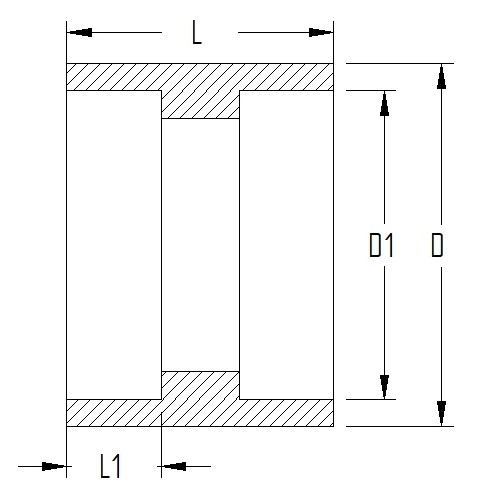

Dimensions for PVDF Coupler
Dimensions for PVDF Coupler
| PVDF COUPLER | ||||||
|---|---|---|---|---|---|---|
| Size | A | B | C | D | E | |
| INCH | MM | |||||
| 1/2″ | 20 | 26 | 19 | 14.5 | 3 | 3 |
| 3/4″ | 25 | 32 | 24 | 16 | 3 | 4 |
| 1″ | 32 | 40 | 31 | 20 | 3 | 4.3 |
| 1 1/4″ | 40 | 50 | 38.8 | 20 | 3 | 5.6 |
| 1 1/2″ | 50 | 62 | 48.7 | 22 | 3 | 6.7 |
| 2″ | 63 | 75 | 61.6 | 26 | 3 | 6.7 |
| 2 1/2″ | 75 | 90 | 73.8 | 31 | 4 | 8 |
| 3″ | 90 | 109 | 87.5 | 36 | 5 | 10.7 |
| 4″ | 110 | 130 | 108.3 | 43 | 6 | 10.8 |
