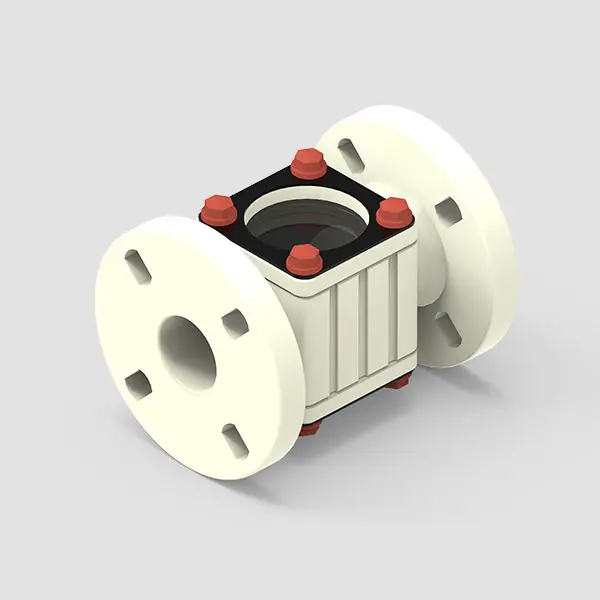

PVDF Double Window Sight Glass Valves
DATA SHEET FOR PVDF Double Window
Sight Glass Valves
| Flange | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | D | d | T | L | BS 10 Table ‘F’ | ASA #150 | ||||
| PCD | Dia of Hole | No. of Hole | PCD | Dia of Hole | No. of Hole | |||||
| 1″ (25NB) | 115 | 25 | 17 | 175 | 87 | 14 | 4 | 79 | 14 | 4 |
| 1.5″ (40NB) | 142 | 40 | 18 | 196 | 105 | 15 | 4 | 98 | 15 | 4 |
| 2″ (50NB) | 165 | 50 | 20 | 196 | 127 | 17 | 4 | 120 | 17 | 4 |
| 3″ (80NB) | 204 | 75 | 27 | 250 | 165 | 17 | 8 | 152 | 17 | 8 |
| 4″ (100NB) | 230 | 100 | 27 | 300 | 191 | 17 | 8 | 191 | 17 | 8 |
Get High-Quality PVDF Double Window Sight Glass Valves
When you are dealing with super aggressive chemicals or high heat, you can’t just use any plastic. Our PVDF Double Window Sight Glass Valves are built for the toughest jobs. These valves allow you to check your flow from two sides without any risk. Since they are made of premium PVDF, they won’t melt or break down even when things get really intense.
Nirmala Pumps is proud to be one of the top PVDF Double Window Sight Glass Valves manufacturers in India, focusing on quality that you can actually see. You get a clear, unobstructed view, a heavy-duty body that prevents leaks, and a design that is remarkably easy to install. It is the best way to make sure your production is running smoothly without having to stop the whole line just to check for flow. As established PVDF Double Window Sight Glass Valves suppliers in India, we keep our prices fair and our shipping fast.
