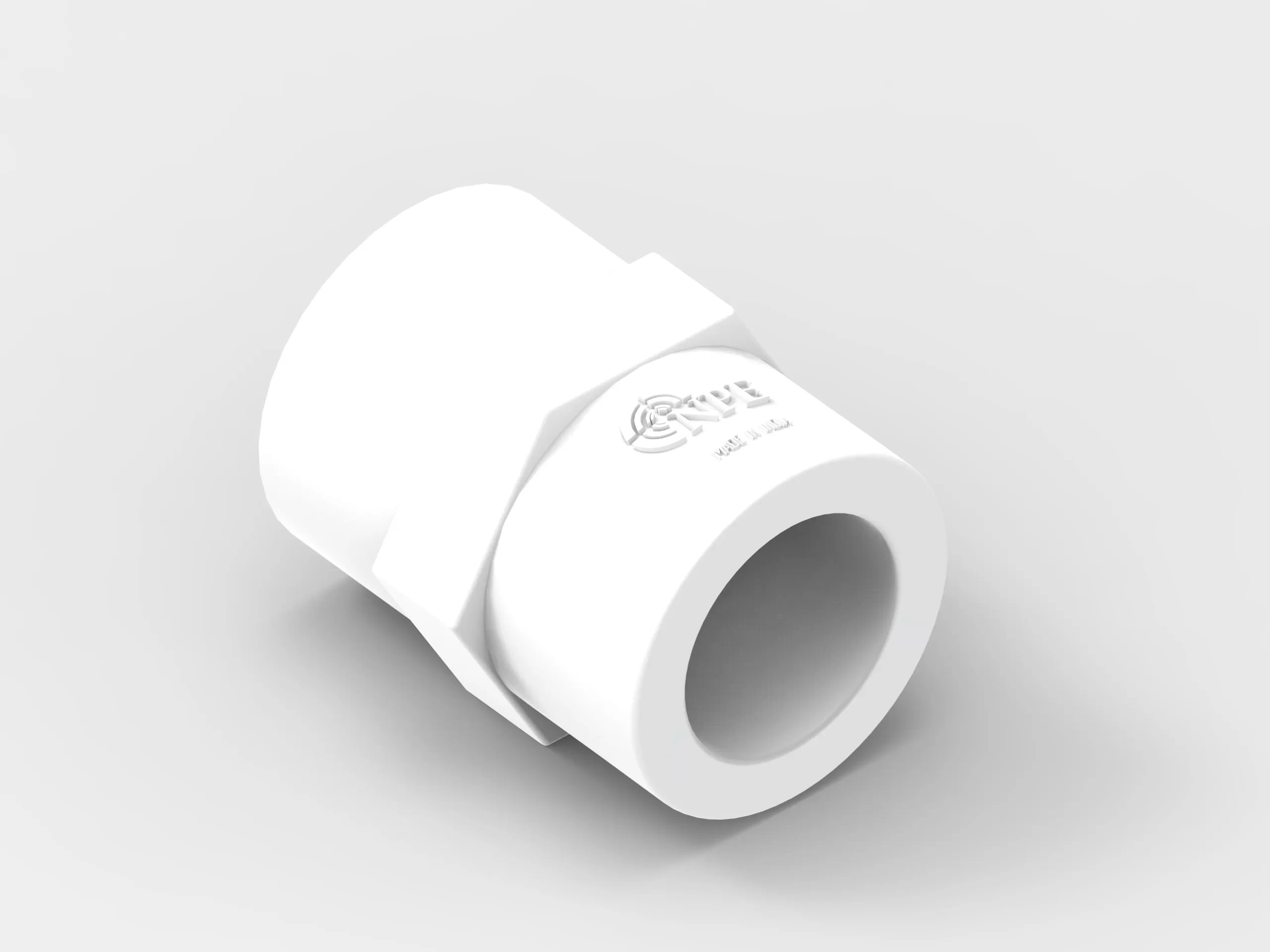

PVDF Female Thread Adaptor
PVDF Female Thread Adaptor
DATA SHEET FOR PVDF Female Thread Adaptor
Dimensions for PVDF Female Thread Adaptor
Dimensions for PVDF Female Thread Adaptor
| PVDF Female Thread Adaptor | ||||||||
|---|---|---|---|---|---|---|---|---|
| SIZE | A | a | B | Tr (BSP,NPT) | L | L1 | L2 | Z |
| 1/2″ | 29 | 19.2 | 35 | 1/2″ | 40 | 20 | 16 | 9 |
| 3/4″ | 35 | 24 | 40 | 3/4″ | 47 | 24 | 20 | 9 |
| 1″ | 44 | 31 | 50 | 1″ | 53 | 28 | 23 | 10 |
| 1 1/4″ | 52 | 39 | 60 | 1 1/4″ | 58 | 30 | 25 | 10 |
