DATA SHEET FOR PVDF Long Neck Pipe End

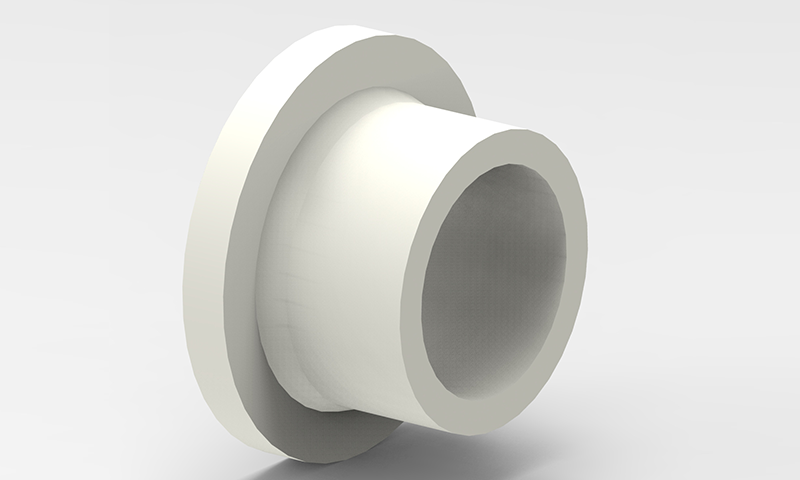

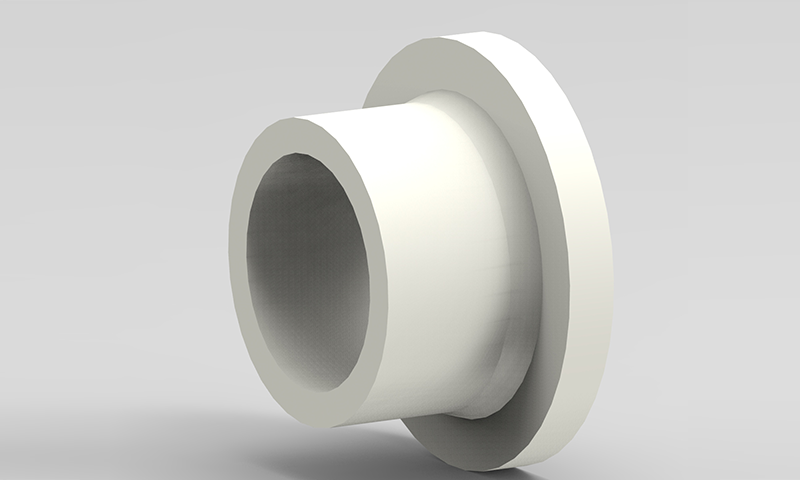

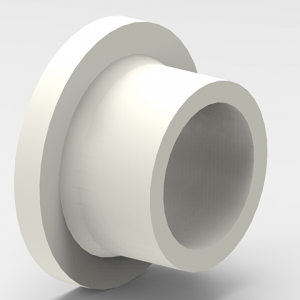

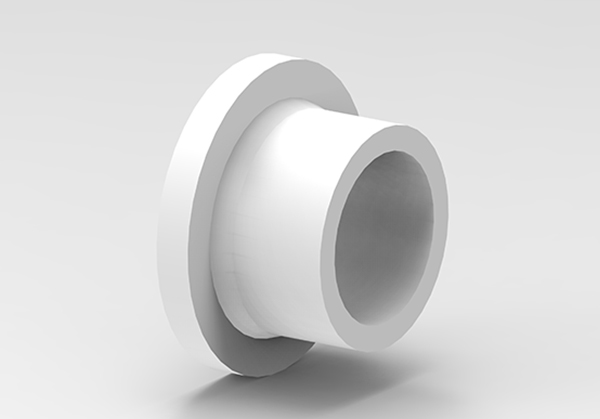

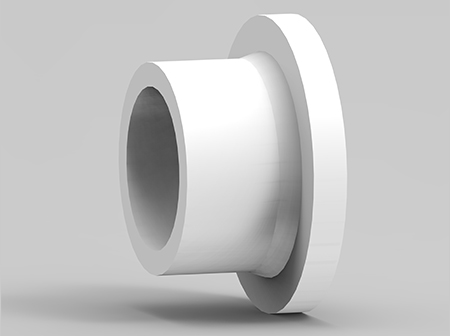

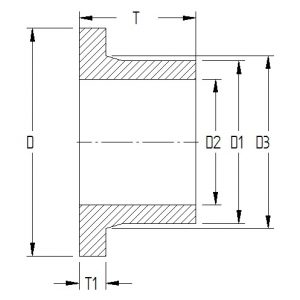

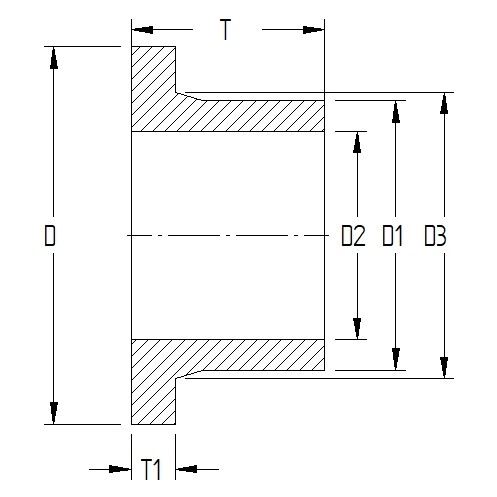

Dimensions for PVDF Long Neck Pipe End
Dimensions for PVDF Long Neck Pipe End
| SIZE | D | D1 | d | D3 | T | T1 | |
|---|---|---|---|---|---|---|---|
| INCH | MM | ||||||
| ½” | 20 | 50 | 20 | 14 | 25 | 34 | 10 |
| ¾” | 25 | 56 | 25 | 18 | 29 | 36 | 10 |
| 1″ | 32 | 64 | 32 | 23 | 37 | 46 | 13 |
| 1 ¼” | 40 | 71 | 40 | 30 | 45 | 47 | 11 |
| 1 ½” | 50 | 80 | 50 | 37 | 57 | 47 | 13 |
| 2″ | 63 | 94 | 63 | 45 | 68 | 48 | 14 |
| 2 ½” | 75 | 106 | 75 | 52 | 82 | 50 | 12 |
| 3″ | 90 | 126 | 90 | 71 | 97 | 83 | 16 |
| 4″ | 110 | 154 | 110 | 85 | 117 | 79 | 18 |
| 6″ | 160 | 211 | 160 | 128 | 168 | 80 | 25 |
