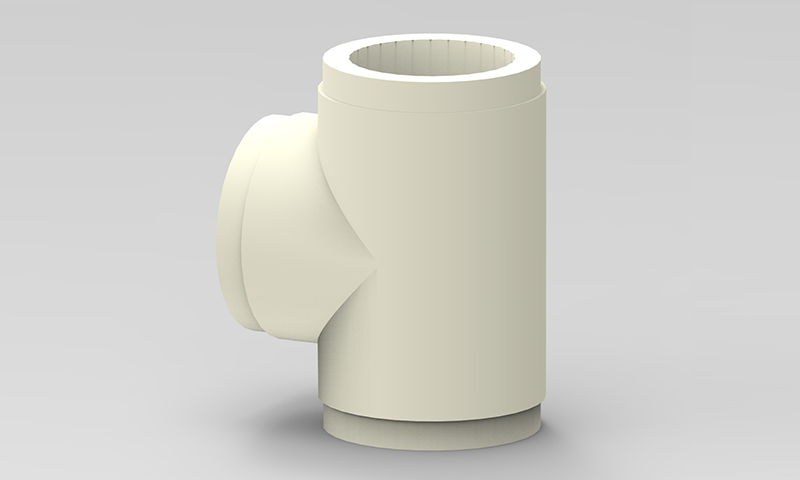

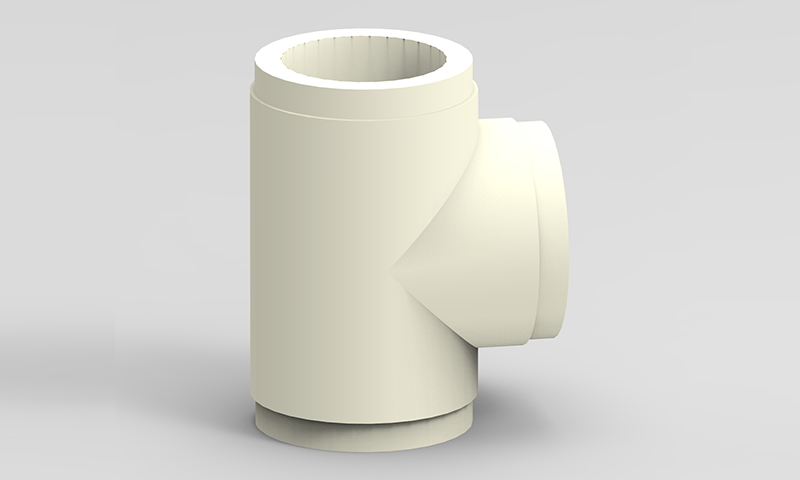

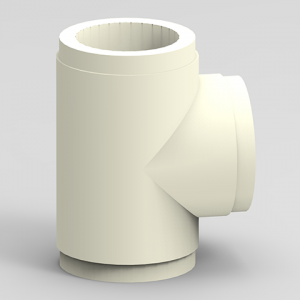

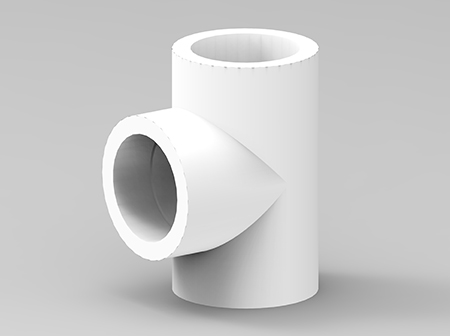

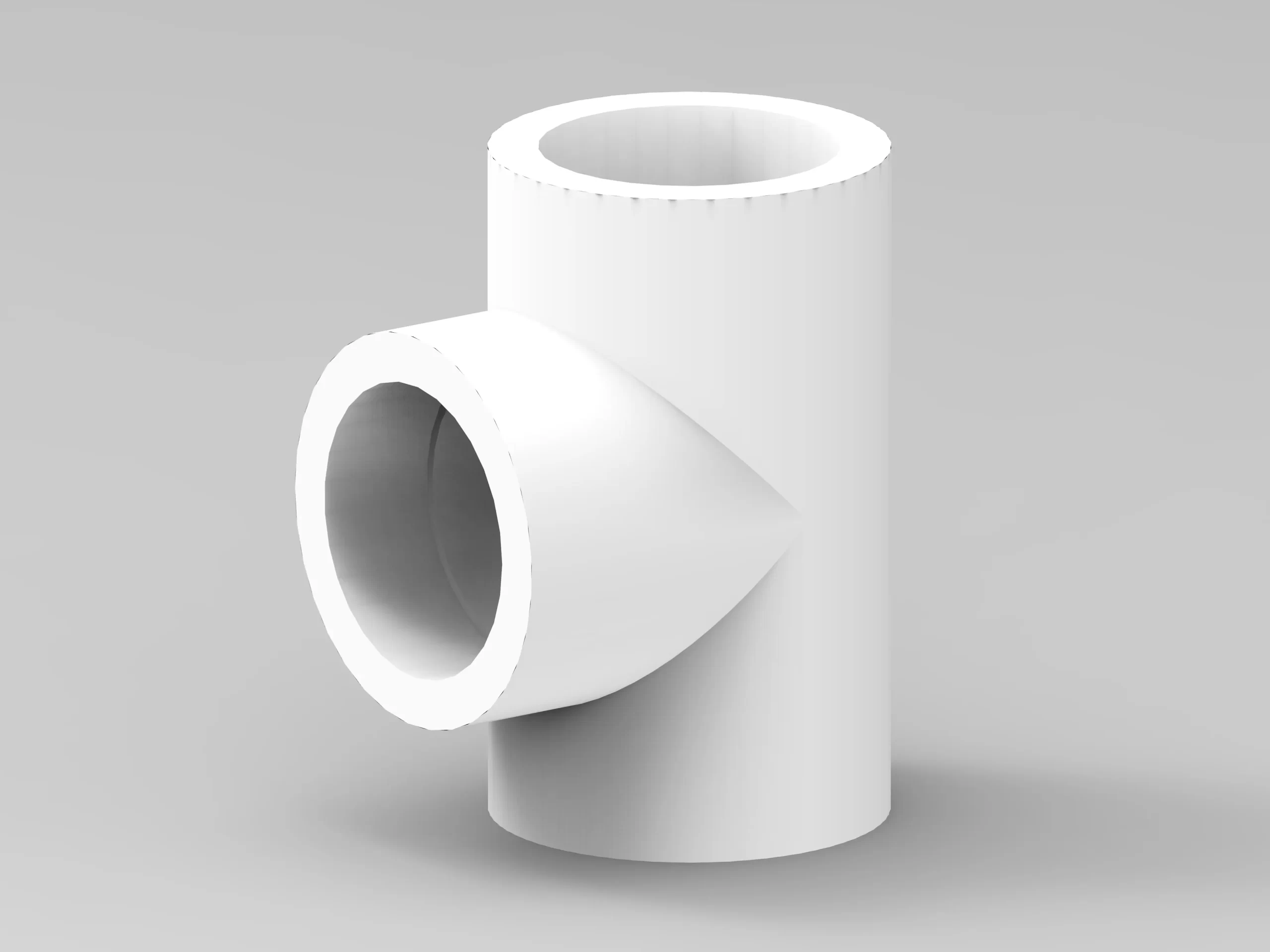

PVDF Tee
PVDF Tee
DATA SHEET FOR PVDF Tee

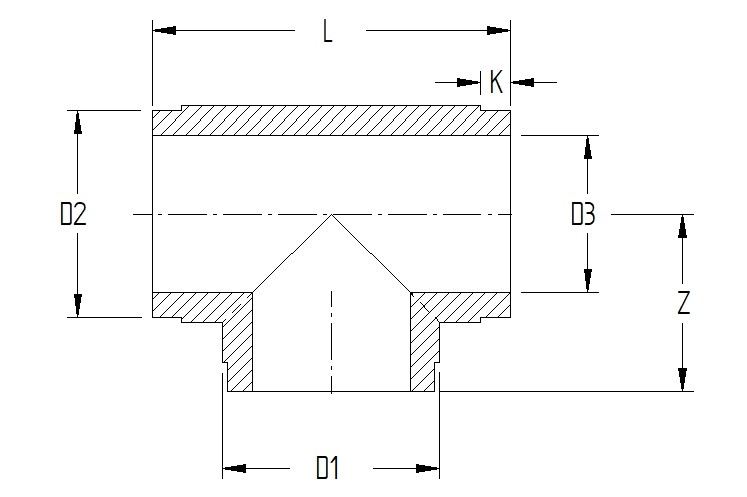

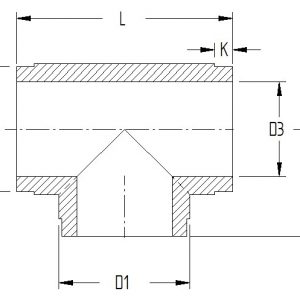

Dimensions for PVDF Tee
Dimensions for PVDF Tee
| PVDF TEE | |||||||
|---|---|---|---|---|---|---|---|
| SIZE | D1 | D2 | Z | T1 | E | L | |
| INCH | MM | ||||||
| 1/2″ | 20 | 27.5 | 19.5 | 25.5 | 14.5 | 4 | 51 |
| 3/4″ | 25 | 33.5 | 24.5 | 29.5 | 16 | 4.5 | 59 |
| 1″ | 32 | 41.3 | 31.3 | 35 | 18 | 5 | 70 |
| 1 1/4″ | 40 | 50.6 | 39.5 | 41.5 | 20.5 | 5.6 | 83 |
| 1 1/2″ | 50 | 63 | 49 | 49.5 | 23.5 | 7.1 | 99 |
| 2″ | 63 | 78 | 61.8 | 60 | 27.5 | 8 | 119 |
| 2 1/2″ | 75 | 91 | 73.7 | 78 | 32 | 8.3 | 157 |
| 3″ | 90 | 111 | 88.2 | 89 | 35 | 11.3 | 178 |
