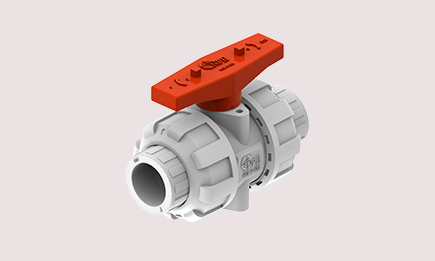

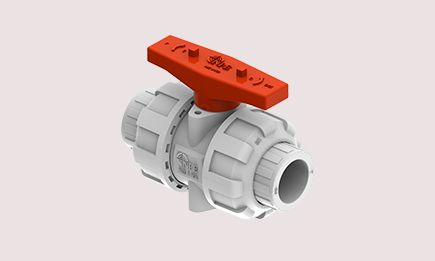

PVDF True Union Ball Valve
PVDF True Union Ball Valve
| PVDF True Union Ball Valve Specifications | |
|---|---|
| Material (Body & Ball) | PVDF (Polyvinylidene Fluoride) |
| End Connection | Socket / Threaded / Flanged |
| Size Range | ½” to 2” (15 mm to 50 mm) |
| Working Pressure | Up to 10 Bar (PN10) |
| Temperature Range | 0°C to +140°C |
| Seal Material | EPDM / FPM (Viton) |
| Seat Material | PTFE |
| Operation | Manual |
| Union Type | Double Union for Easy Maintenance |
| Color | Natural Translucent White |
- High Chemical Resistance
- Full bore for maximum flow
- Double union design for easy installation & removal
- Wide Temperature Range – -20°C to +120°C
- Corrosion-Free Long Life
- Smooth lever operation
- Chemical Processing Plants
- Pharmaceutical & Biotechnology Industries
- Laboratories Research Facilities
- Semiconductor Manufacturing
- Food & Beverage Processing
Explore Our Range of PVDF True Union Ball Valve
When you are dealing with really aggressive acids or high-temperature fluids, you can’t just settle for any valve. Our PVDF True Union Ball Valve is built for the most extreme conditions you can throw at it. This model features the “True Union” design which is a huge plus because it lets you remove the valve body for cleaning or repairs by simply unscrewing the nuts, leaving your pipes exactly where they are.
At Nirmala Pumps, we design customized ball valves according to customers’ requirements. We have worked hard to be known as one of the best PVDF True Union Ball Valve manufacturers in India, focusing on quality that you can actually trust. Our PVDF valves offer top-tier chemical resistance, a smooth-turning handle that won’t stick, and a leak-proof seal that stays tight under pressure. As reliable PVDF True Union Ball Valve suppliers in India, we make sure our stock is always ready so you don’t have to deal with long wait times.
