DATA SHEET FOR 100 Aluminum AODD Pump
PUMP DESCRIPTION
MATERIALS
100 Aluminum AODD Pump GAD
PUMP DESCRIPTION
| Applications | Acids, Sludge, Resins, Ink Industry |
| Make | “NIRMALA” Make |
| Quantity | 1 |
| Air Pressure | 7 bar |
| Max. Capacity | 15 LPM |
| Air Inlet / Outlet | ¼” BSP (6.35mm) |
| Liquid Inlet / Outlet | ⅜” BSP (12.70 mm) |
| Type | Air Operated Diaphragm Pump |
| Connections | BSP Threaded |
| Diaphragm | Teflon Diaphragm |
| NRV Ball | Teflon Ball |
| Max Partical Size (Dia) | 1.2 mm (0.078”) |
MATERIALS
| Wetted Parts | Aluminium |
| Outer Piston | Aluminium |
| Centre Piston | Aluminium |
| Air Valve | Aluminium |
| Diaphragm | PTFE Diaphragm |
| Valve Ball | SS 316 |
| Valve Seat | SS 316 |
| O Ring | Neoprene |

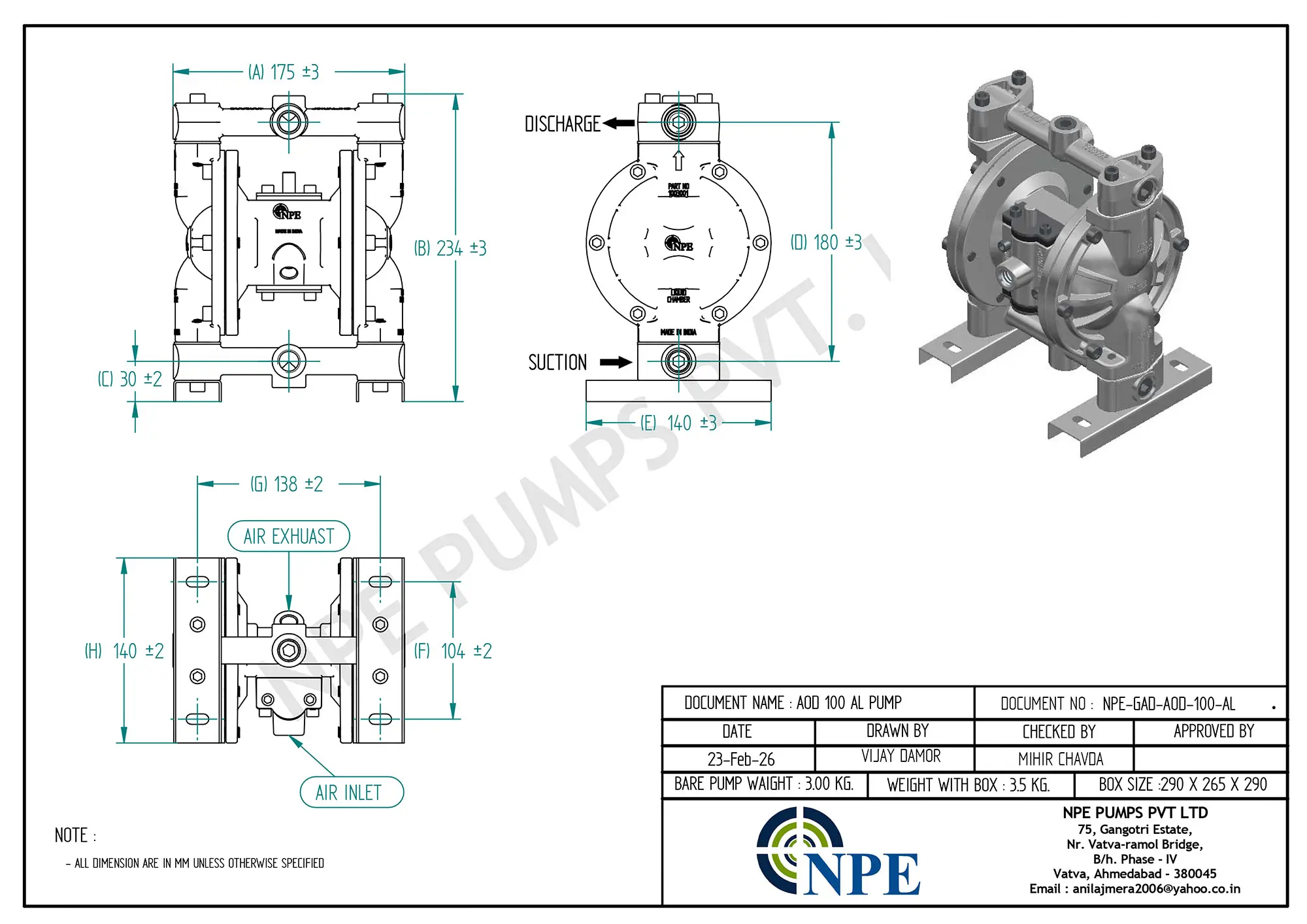

100 Aluminum AODD Pump GAD
